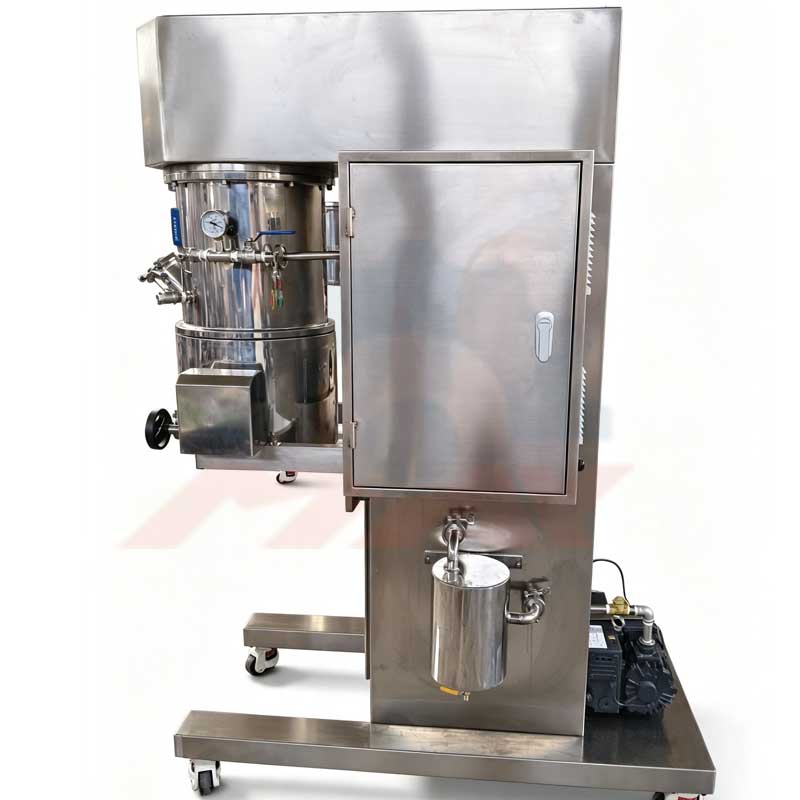

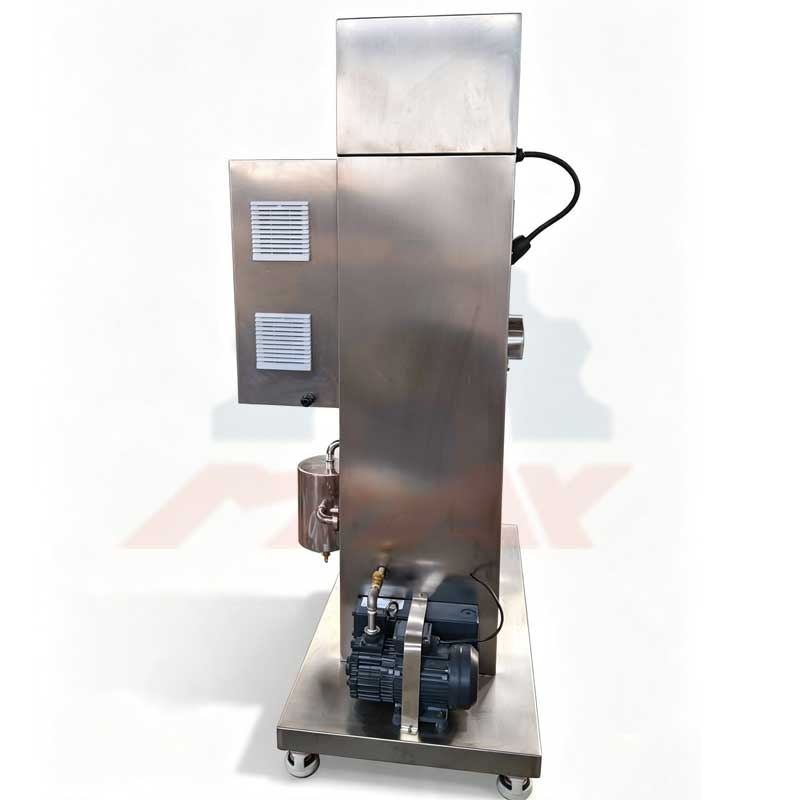

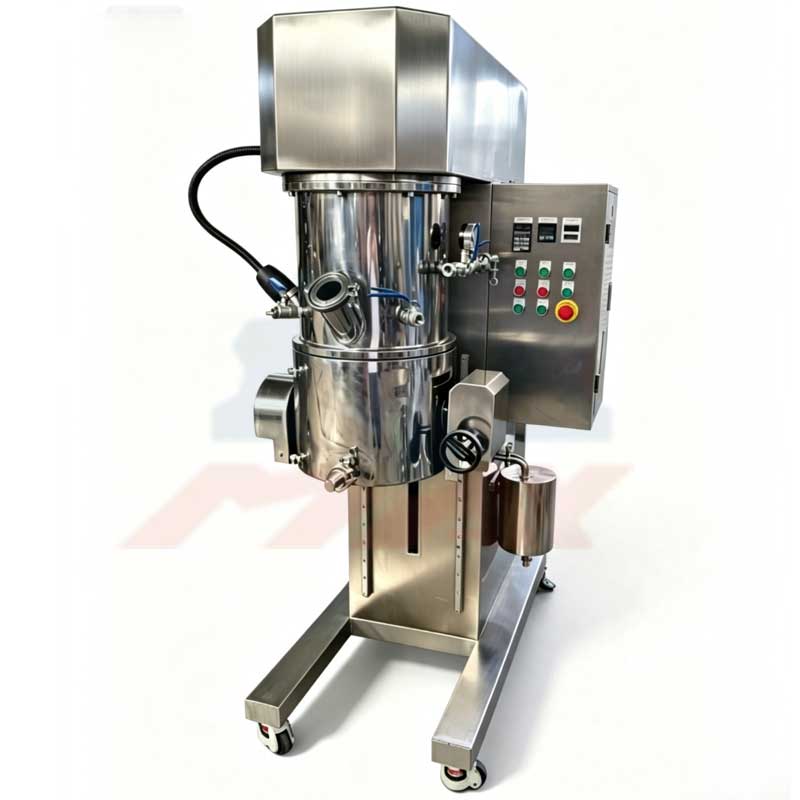

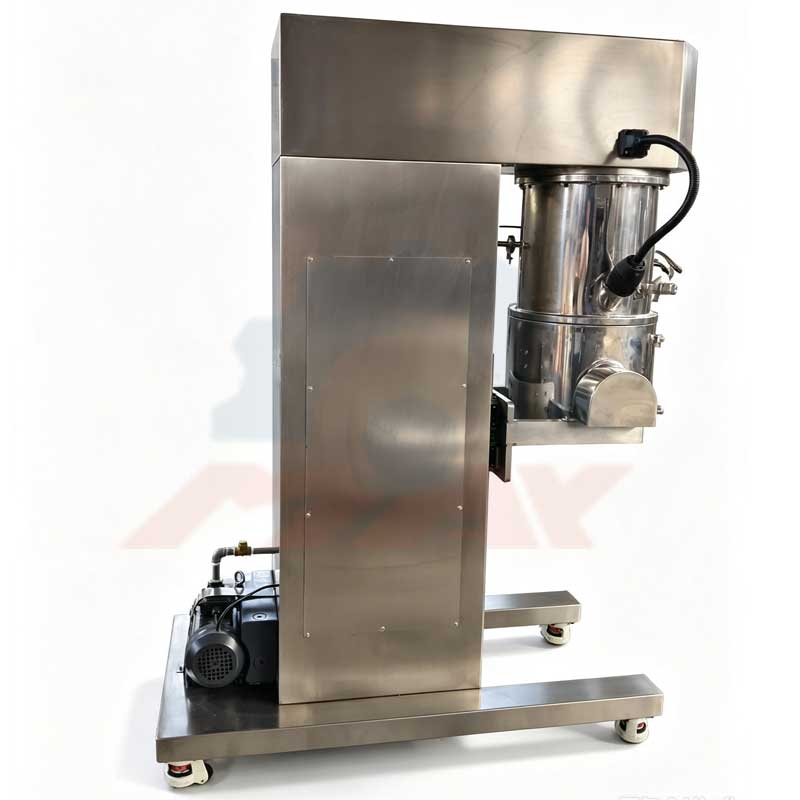

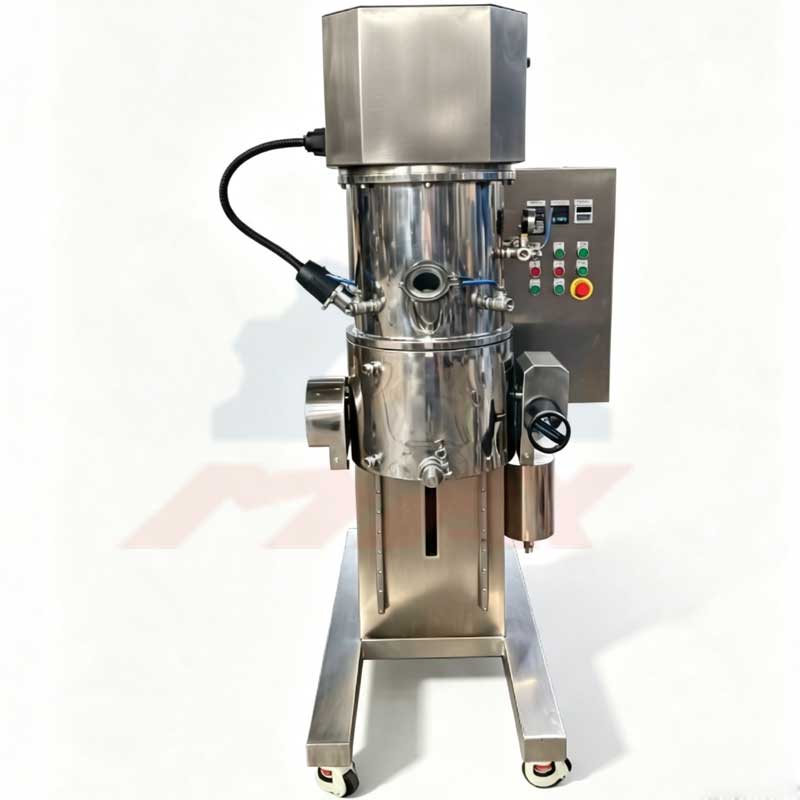

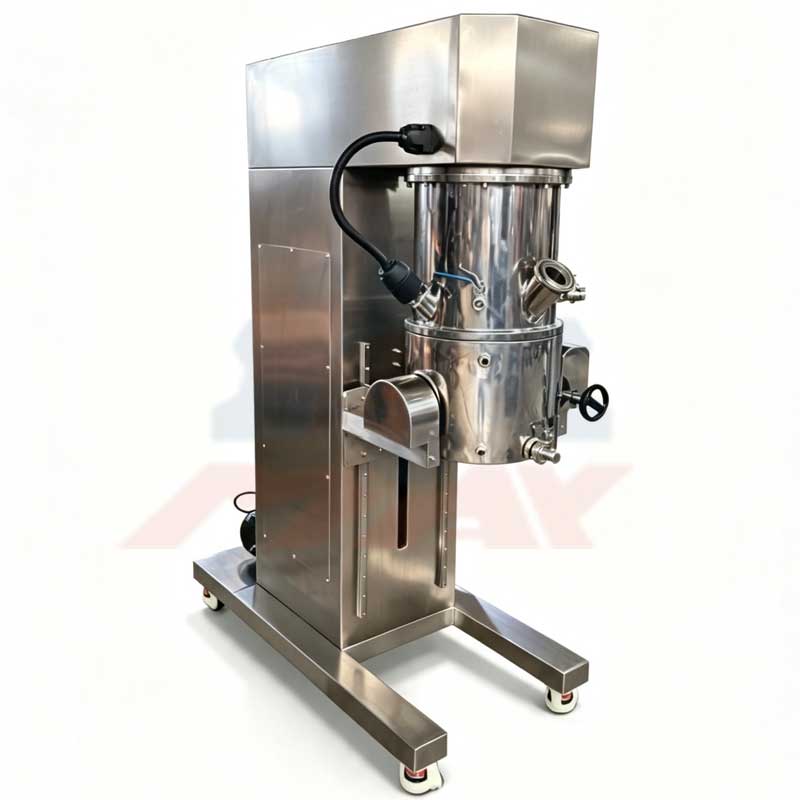

The Indispensable 20L Vacuum Planetary Mixer in Lithium Battery R&D
In the lithium-ion battery manufacturing chain, the electrode slurry mixing process—often referred to as the "slurry preparation" step—is the undisputed starting point for quality. The uniformity, stability, solid content, and bubble-free nature of the cathode (e.g., LFP, NCM) and anode (e.g., graphite, SiC) slurries directly determine the success of subsequent coating, calendering, slitting, and ultimately, the electrochemical performance and safety of the finished cell.
In this critical context, the 20L Vacuum Planetary Mixer has established itself as the workhorse of materials laboratories and pilot lines worldwide. Its popularity stems from a perfect balance: it is large enough to generate data that reliably scales to production-size equipment, yet compact and flexible enough for the rapid, iterative experimentation essential for cutting-edge R&D. This article provides a comprehensive analysis of its core principles, key specifications, and practical applications in lithium battery material development.
Why 20 Liters? The "Goldilocks" Capacity for Battery Slurry
Selecting the right mixer capacity is a strategic decision in battery R&D. A 5L or 10L unit, while economical with expensive materials, typically features small impellers. The resulting mixing blade tip speed and shear forces often fail to correlate with those found in production-scale mixers (e.g., 500L, 1000L). This mismatch frequently leads to the "success in the beaker, failure in the factory" syndrome.
Conversely, a 50L mixer is more representative of production but demands large quantities of costly active materials, binders, and solvents for a single test. Cleaning and switching between formulations also become time-consuming and wasteful.
The 20L Vacuum Planetary Mixer is the ideal compromise. For a typical cathode slurry with a solid content of approximately 70-75%, a single batch yields 15-25 kilograms of slurry—ample material for comprehensive characterization, electrode coating, and even prototype cell assembly. Crucially, the geometric similarity (impeller diameter, tank aspect ratio) with larger mixers ensures that the processing parameters (e.g., mixing tip speed, power per unit volume) are scalable. The scale-up factor from a 20L pilot machine to a 300L or 500L production unit is often a manageable 5-10x, making the data directly relevant for process transfer.
Core Working Principle: Synergy of Planetary Motion and High-Speed Dispersion
The ability of the Vacuum Planetary Mixer to handle highly viscous and cohesive lithium battery slurries lies in its unique dual-action mechanism.
The Low-Speed Mixing Component: This consists of two "sigma-blade" or "spiral-frame" impellers. Driven by a planetary gear system, these impellers rotate on their own axes (self-rotation) while simultaneously orbiting the central axis of the mixing vessel (revolution). This complex movement creates a dynamic, three-dimensional flow field that continuously folds, shears, and transports the material from the wall to the center and from the bottom to the top. This prevents the formation of stagnant zones, ensuring macro-scale homogeneity—a critical requirement for high-viscosity, high-solid-loading electrode pastes.
The High-Speed Dispersion Component: This is the key to breaking up agglomerates of active material and conductive additives (like SP carbon black or CNTs). One or two high-speed dispersion disks (usually toothed) are attached to the planetary carrier. While revolving with the carrier, each disk is independently driven by a dedicated motor to spin at very high speeds, typically up to 0-3000 RPM. The peripheral speed of the disk edge can reach 15-25 m/s or higher. At this velocity, the slurry is subjected to intense shear, impact, and cavitation forces, effectively de-agglomerating the fine particles to the primary particle level. For advanced materials like single-walled carbon nanotubes (SWCNT), this high-shear dispersion is non-negotiable.
Auxiliary Scraper: A scraper arm, which also revolves, continuously peels the material from the vessel wall and bottom, reintroducing it into the main mixing flow. This action not only eliminates dead corners but also dramatically improves heat transfer between the slurry and the jacketed vessel wall.
Key Technical Specifications and Selection Criteria
When sourcing a 20L Vacuum Planetary Mixer for a specific lithium battery material system, consider these critical parameters. The table below offers a quick reference guide.
| Parameter Category | Typical Range / Specification | Criticality for Li-Ion Slurry Processing |
|---|---|---|
| Effective Volume | 20 liters (Design volume ~28-30L) | Determines batch size. Filling ratio of 60-80% is recommended to account for slurry expansion and vortex formation. |
| Mixing Motor Power | 2.2 kW - 4 kW | Dictates torque and the maximum viscosity limit. High-solids NMC or LFP cathodes generally require motors ≥3kW. |
| Dispersion Motor Power | 3 kW - 5.5 kW | A more powerful motor ensures effective dispersion of hard-to-wet materials like CNTs and high-surface-area carbons. |
| Dispersion Disk Speed | 0 - 3000 RPM (variable) | Focus on tip speed (m/s), not just RPM. A tip speed ≥15 m/s is recommended for effective nanoparticle de-agglomeration. |
| Ultimate Vacuum Level | ≤ -0.098 MPa (-980 mbar) | High vacuum is essential for degassing. A system with good vacuum hold capability prevents air from being re-entrained during mixing. |
| Temperature Control | Jacketed vessel for cooling/heating | Precision cooling (±3°C) is vital to remove frictional heat and prevent PVDF binder gelation or slurry viscosity drift. |
| Impeller-Wall Gap | ≤ 5 mm | A smaller gap ensures superior scraping efficiency and minimizes dead zones, crucial for high-viscosity, wall-sticking slurries. |
| Material & Finish | SUS304/SUS316L, mirror-polished | To prevent metal contamination (crucial for cell safety), a surface roughness of Ra ≤ 0.4μm is standard, often with pickling passivation. |
| Sealing System | Double mechanical seal | Prevents contamination and maintains stable vacuum when processing materials with volatile solvents like NMP. |
Key Applications in Lithium Battery R&D
In practice, the Vacuum Planetary Mixer is instrumental in three core development scenarios:
Novel Formulation Development: When introducing new active materials (e.g., high-silicon anodes), new conductive additives (e.g., graphene), or alternative binder systems, this mixer produces consistent, high-quality slurry for coating and electrochemical testing. This rapid screening capability accelerates the material innovation cycle.
Process Optimization and Scale-Up: This is the mixer's most significant contribution. R&D teams systematically vary processing parameters (mixing speed, dispersion time, feeding sequence, temperature, vacuum level) to build a robust understanding of their influence on slurry rheology and electrode performance. Critically, data from the 20L unit—such as mixing power curves and viscosity profiles—provides a reliable baseline for setting parameters on production-scale mixers, dramatically reducing time-to-market for new products.
Incoming Material Quality Assurance: For both active material suppliers and battery manufacturers, the mixer serves as a standardized tool for qualifying raw material batches. A standard slurry preparation and testing protocol using the 20L Vacuum Planetary Mixer can quickly detect any batch-to-batch variations that might affect final battery performance.
Future Trends and Purchasing Advice
The global lithium battery industry is driving the Vacuum Planetary Mixer towards greater intelligence and connectivity. Advanced 20L models now offer features designed to enhance experimental quality and efficiency:
Inline Viscosity Monitoring: A sensor provides real-time viscosity data, aiding in the objective determination of the dispersion endpoint.
Torque Monitoring: Changes in mixing torque correlate with slurry consistency, serving as a valuable process analytical technology (PAT) tool.
Recipe Management Software: Allows for the storage and recall of validated mixing programs, ensuring excellent batch-to-batch reproducibility.
Before making a purchase, we strongly recommend a material trial using your actual formulation to evaluate the mixer's performance firsthand. Also, assess the supplier's ability to provide comprehensive technical support, including installation, training, and responsive after-sales service.
The 20L Vacuum Planetary Mixer is far more than a simple piece of equipment; it is a strategic tool that bridges the gap between fundamental research and commercial production. Its ability to accurately simulate large-scale processes while maintaining the flexibility required for experimentation makes it an irreplaceable asset in the pursuit of safer, higher-energy, and longer-lasting lithium-ion batteries. Understanding its mechanics, selecting the right configuration, and applying it strategically to formulation and process development is key to success in the competitive battery materials field.
