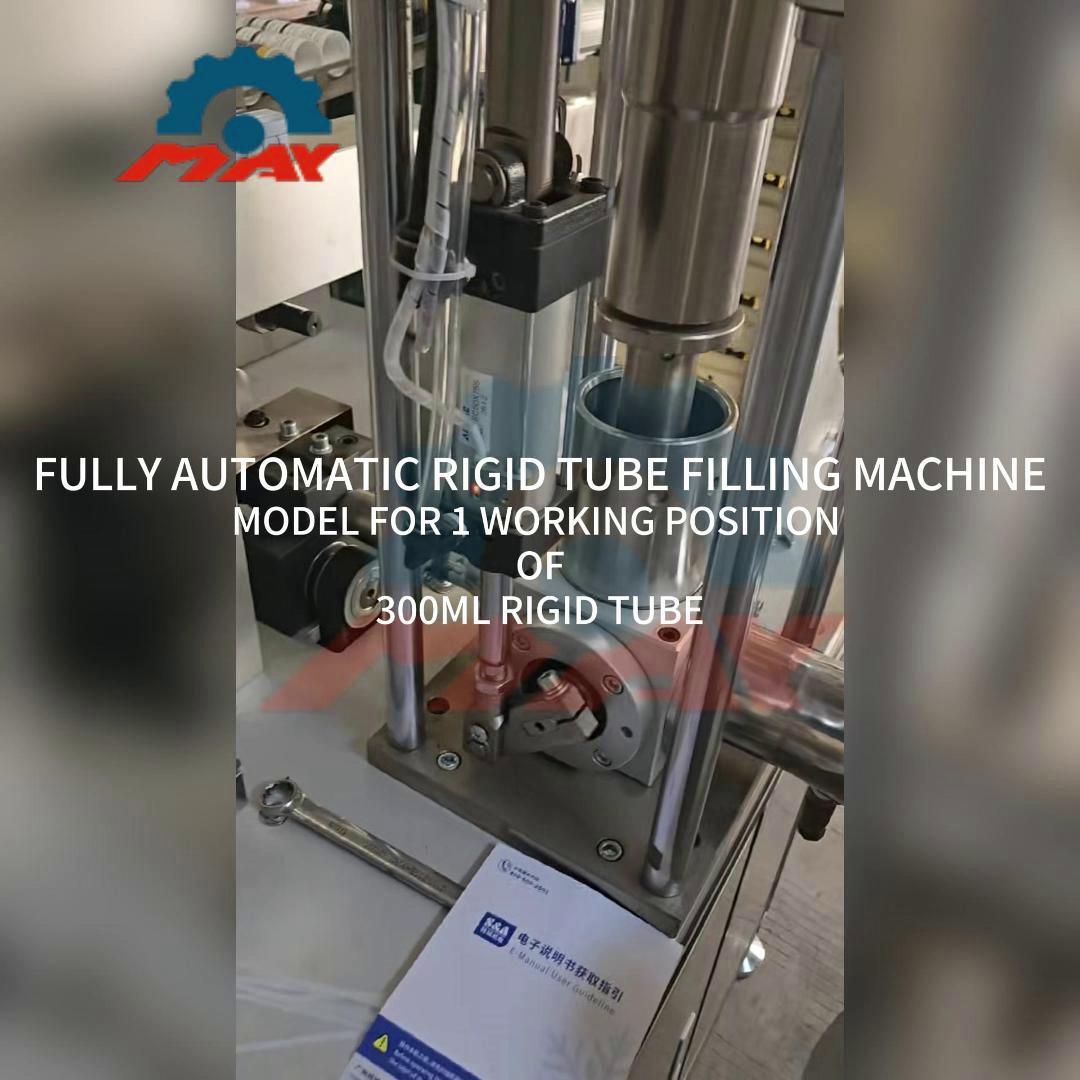

Fully Automatic 300ml-400ml Rigid Tube Cartridge Filling Machine
Maxwell horizontal full automatic rigid tube filling machine is a professional integrated packaging equipment independently developed for high-viscosity paste materials such as silicone sealant, MS polymer glue, water-based adhesive and industrial lubricating grease. The mainstream model ZJW300-1 adopts a horizontal overall stainless steel layout, integrating automatic tube feeding, cap sorting, servo quantitative filling, wire cutting, plunger pressing and coding functions in one unit.
Different from semi-automatic filling lines that need to be matched with a separate hydraulic extruder and manually place empty tubes, this fully automatic machine realizes continuous unattended production. It effectively cuts labor costs, stabilizes filling accuracy within ±0.5%, and supports mass continuous production for adhesive factories, grease manufacturers and chemical plants. The machine reserves installation space for inkjet coding equipment, and supports horizontal and vertical structural customization according to the fluidity of raw materials.

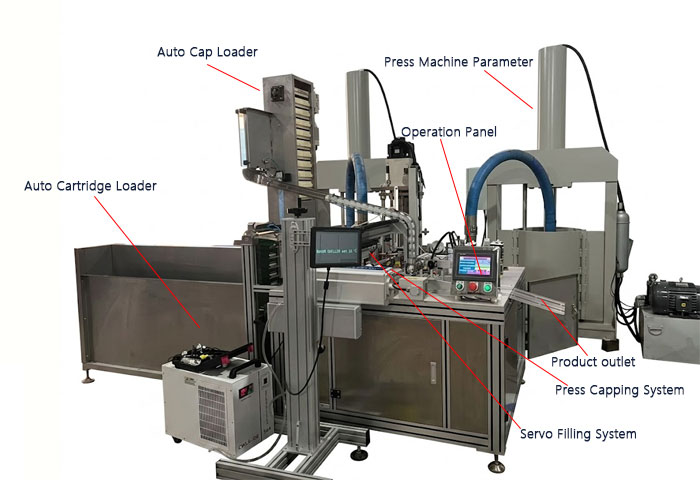

Working Principle

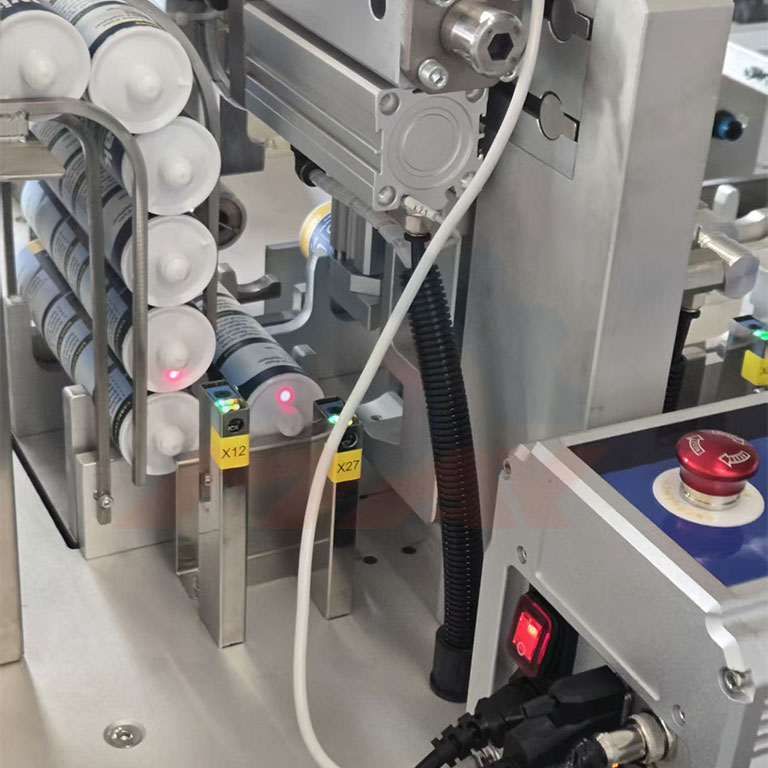

Automatic tube feeding: Empty rigid tubes are stored in the large storage tank, and the cartridge loader automatically arranges and conveys empty tubes to the filling station one by one.

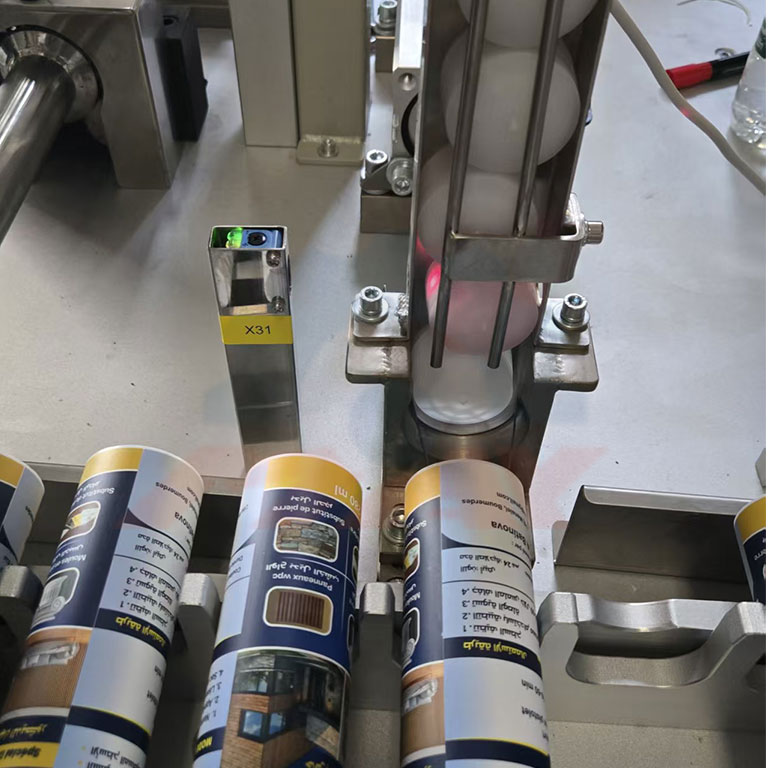

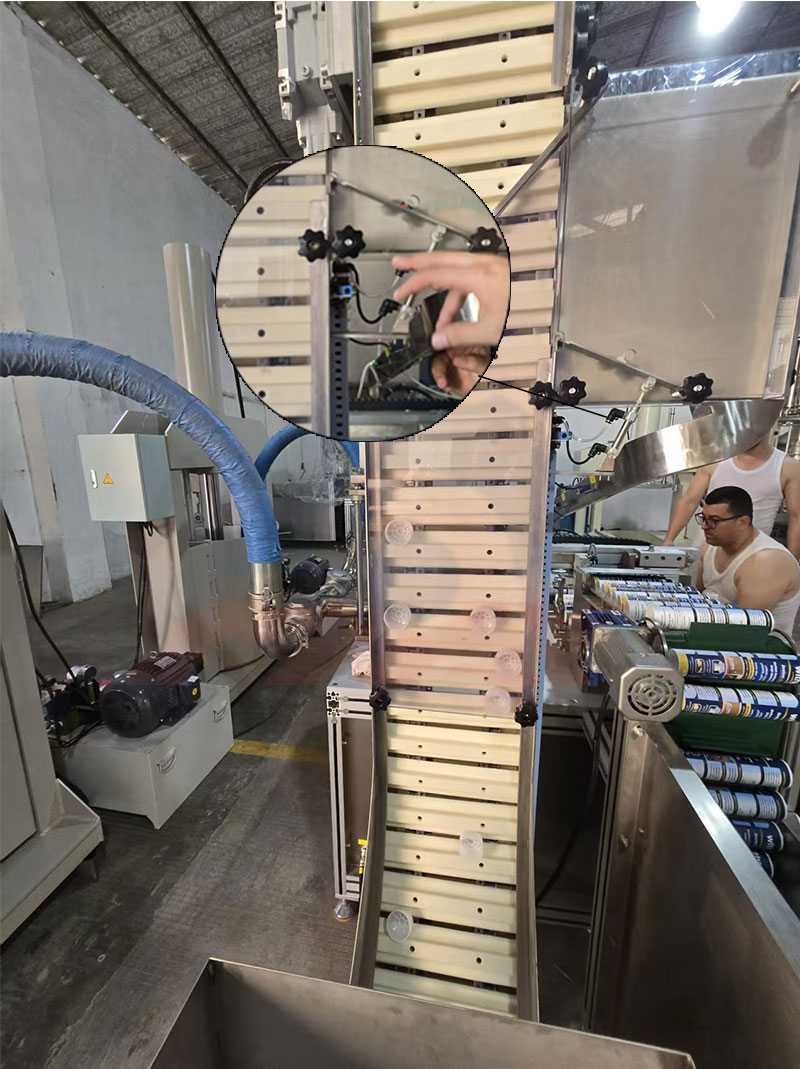

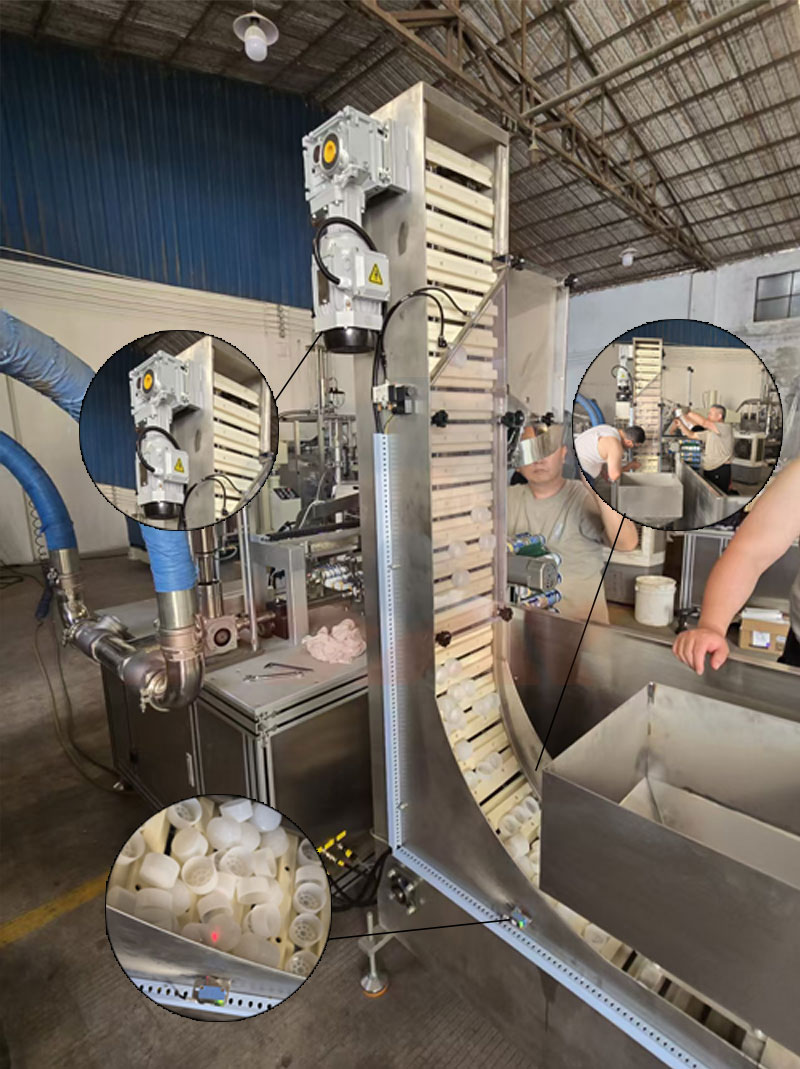

Automatic cap feeding: The vertical cap elevator sorts plastic plungers and sends them to the pressing station synchronously.
Servo quantitative filling: The servo metering system extracts paste from the feeding port, and accurately fills a fixed volume of material into the rigid tube with a precision of ±0.5%.
Filament cutting: The cutting mechanism cuts the excess adhesive wire at the tube mouth to keep the tube surface clean.
Plunger pressing: The pneumatic cylinder pushes the plastic plunger tightly into the tube mouth to form an airtight seal and prevent material leakage.
Discharging & coding: Finished glue tubes slide out from the product outlet, and the optional inkjet printer completes batch coding on the tube surface.
Core Functions
Full automatic unmanned operation: Complete tube feeding, cap feeding, filling and capping without manual intervention.
High-precision servo metering: Filling tolerance ≤±0.5%, reduce raw material waste and uniform finished product consistency.
Multi-specification compatibility: Adapt to 300ml adhesive tubes and 400ml grease tubes by replacing simple molds.

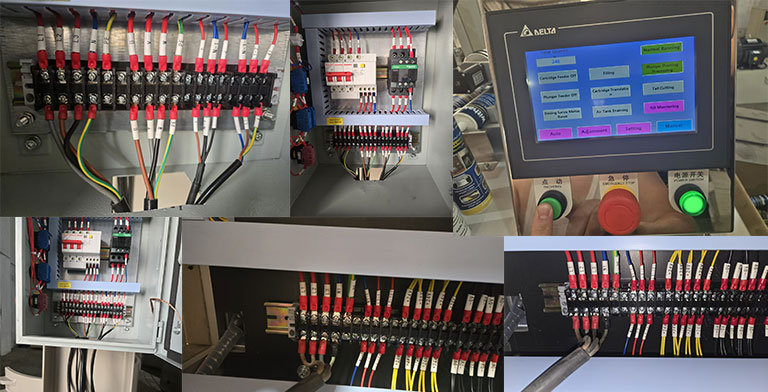

Multi-formula storage: PLC touch screen stores formulas for different glues, one-click switching of production parameters.
Complete safety protection: Full-process detection, abnormal alarm, automatic shutdown and emergency stop function.
Optional inkjet coding: Reserved coding installation position for production date, batch number printing.
Customizable layout: Horizontal standard type, vertical optional for low-fluidity paste materials.
Equipment Technical Parameters
| English Item | Detailed Specification |
|---|---|
| Applicable Materials | Silicone sealant, MS glue, water-based adhesive, lubricating grease and all high-viscosity pastes |
| Compatible Cartridge | 300ml adhesive tube (ZJW300 series); 400ml grease tube (ZJW400 series) |
| Production Speed | 1/2/3: 25–35 pcs/min; 2S high-speed: 45–60 pcs/min |
| Filling Precision | ±0.5% |
| Machine Layout | Horizontal as standard, vertical optional |
| Automatic Workflow | Auto tube feeding → cap feeding → quantitative filling → filament cutting → cap pressing → coding |
| Optional Function | Automatic inkjet coding (coding machine provided by customer) |
| Safety System | Full-process detection, fault alarm, auto shutdown & emergency stop |

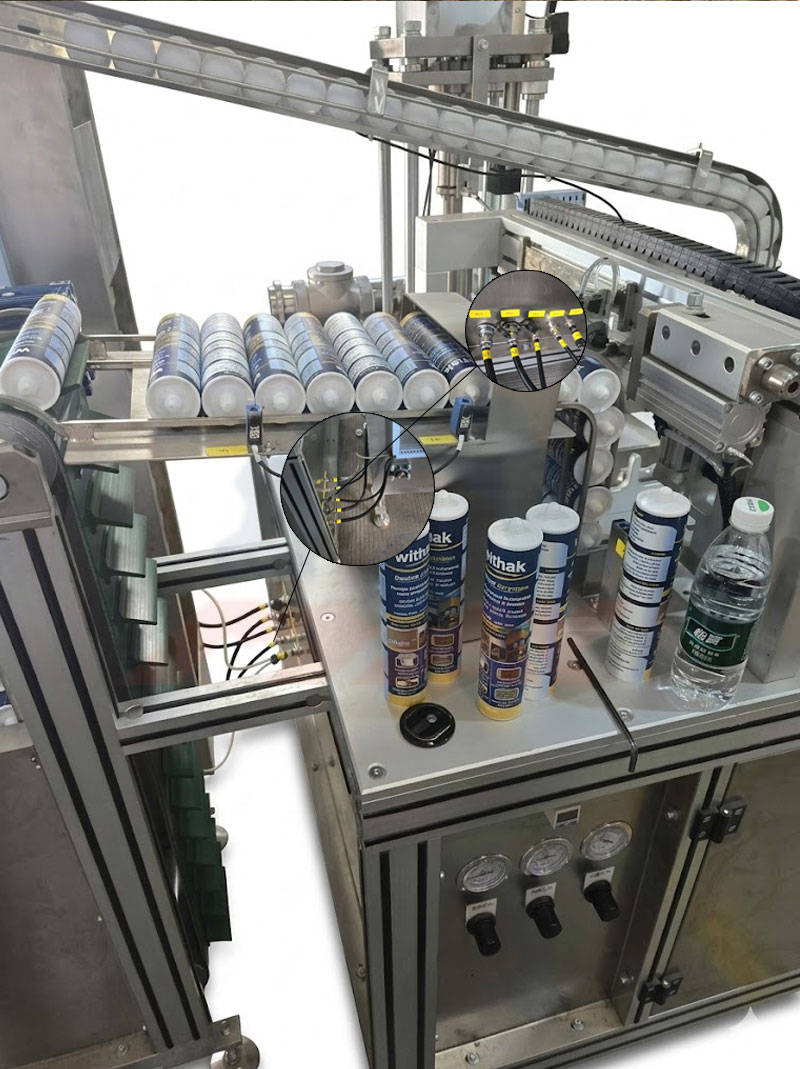

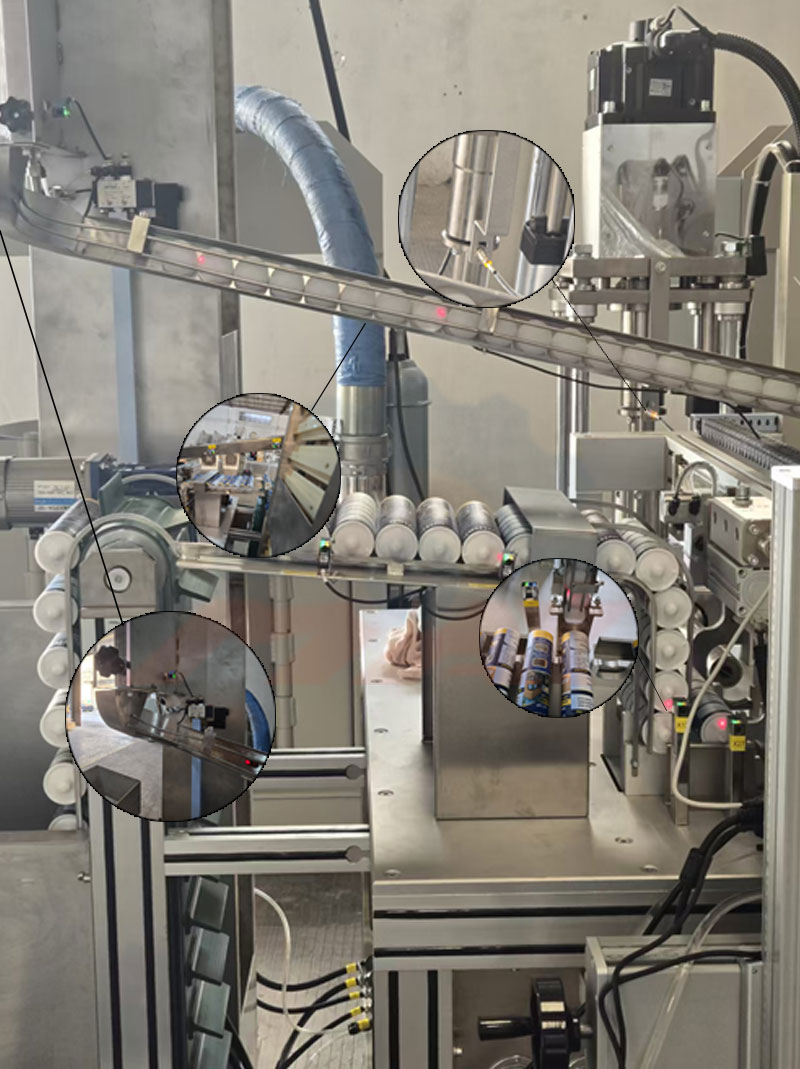

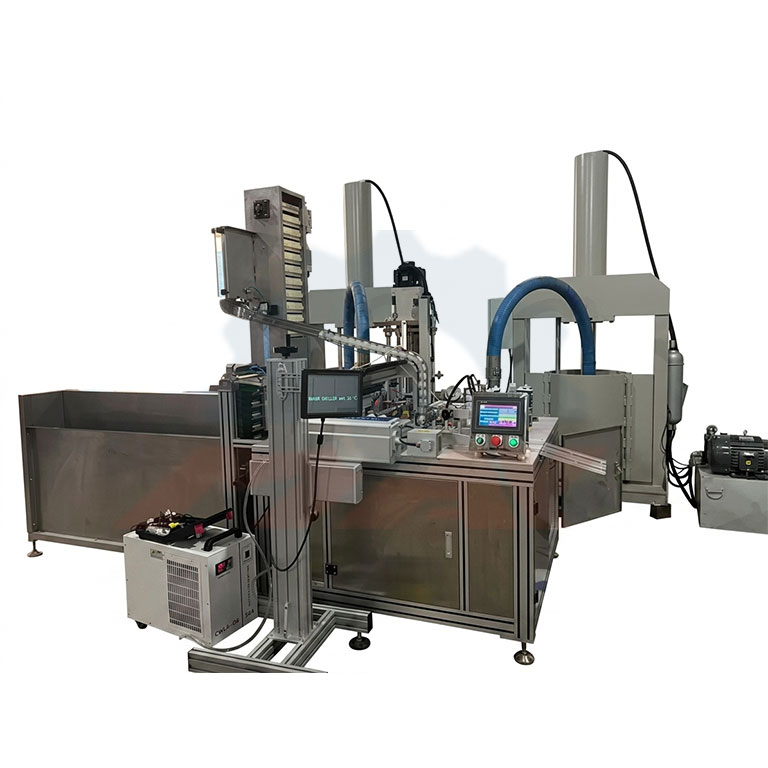

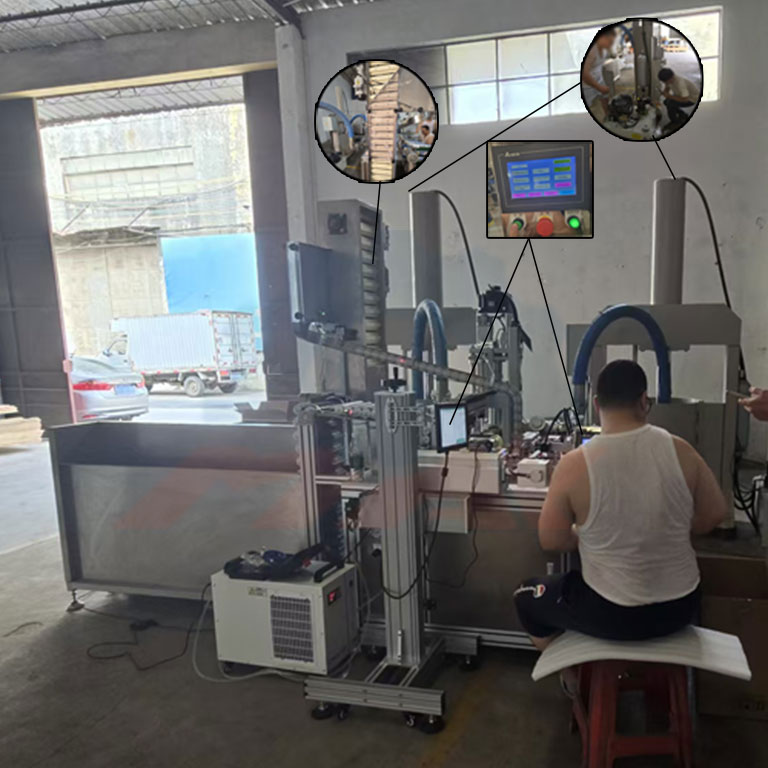

Equipment Detailed Drawings

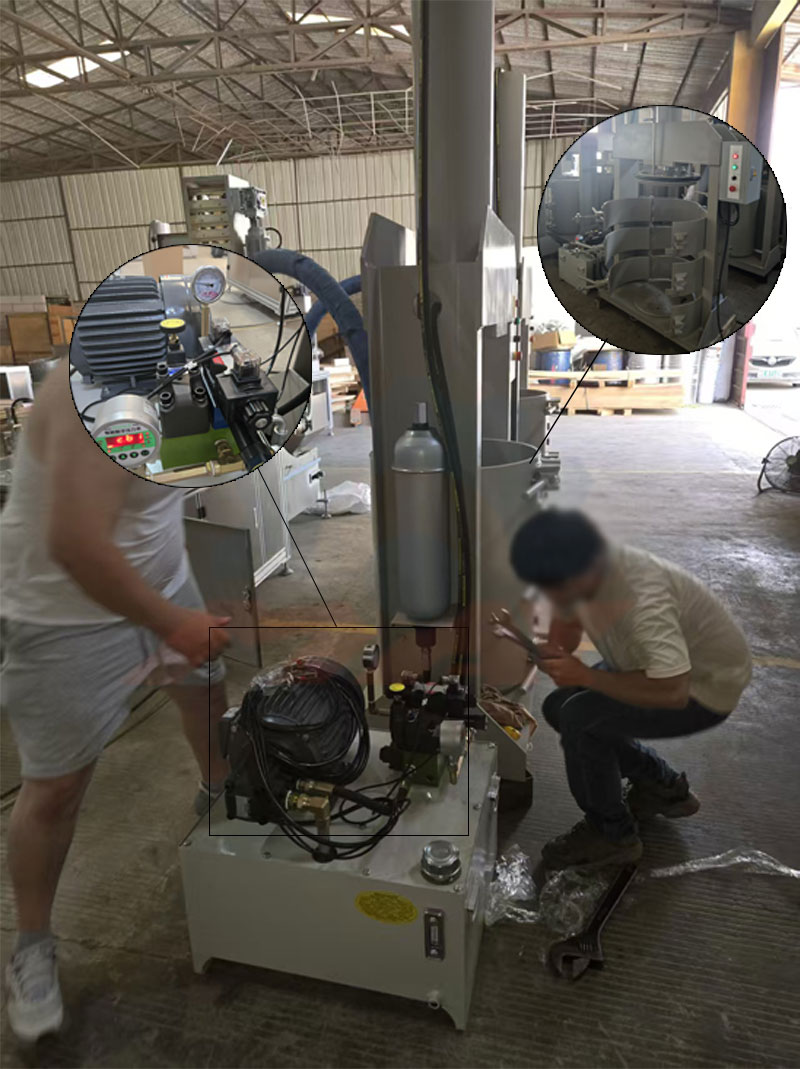

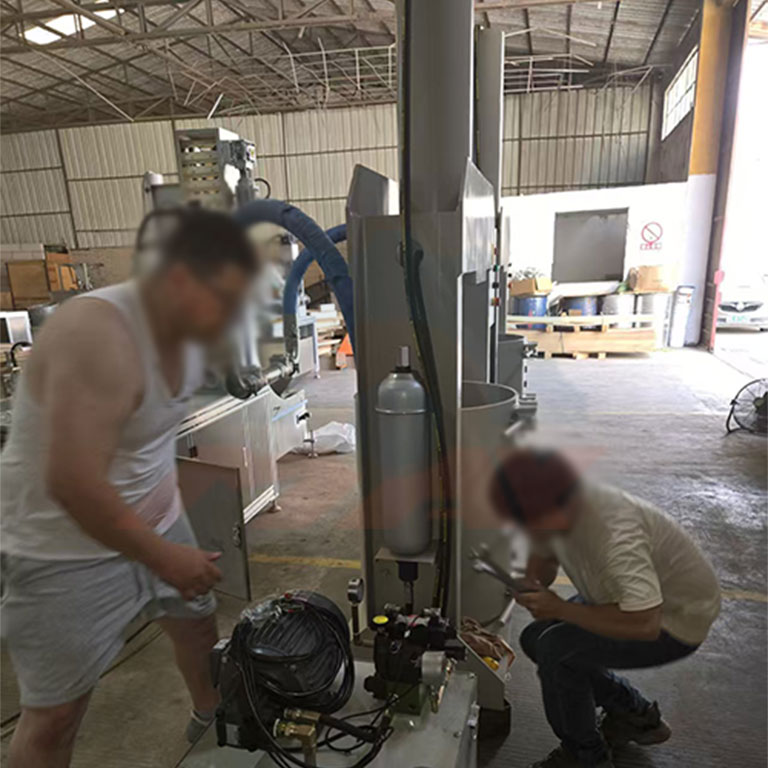

Press Material Machine parameters
Equipment name | Press Material Machine |
Type | YJ200-1/YJ200-2 |
Power Supply | AC 3~380V+Nwire /50HZ |
Extrusion force | 45T/60T |
suitable bucket | 200L(Dia570MM*Heigh880MM) standard bucket |
Outlet size | DN65 |
Hydraulic station oil tank | 120L |
motor | 4KW/Hydraulic motor |
Hydraulic station oil size | L650MM*W550MM*H800MM |
Application Scope
Construction sealant industry: Neutral silicone weatherproof glue, MS modified structural adhesive, caulking gap filler filling production;
Auto parts industry: Chassis lubricating grease, assembly anti-seize grease, automotive sealant packaging;
Daily chemical industry: Water-based caulking glue, glass glue, household filling paste processing;
Electronic manufacturing industry: Electronic potting glue, insulating silicone grease, circuit sealant tube filling;
Special chemical factory: Industrial anti-corrosion paste, high temperature resistant grease cartridge packaging.
