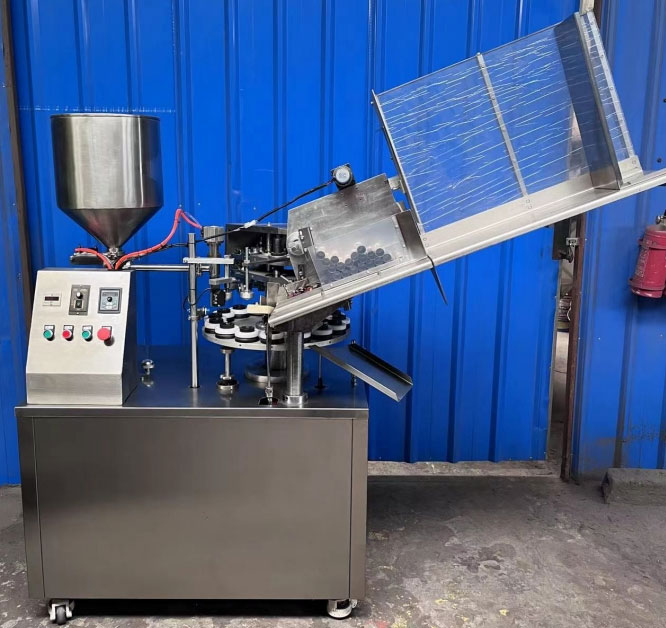

JGF Series Automatic Aluminum Tube Filling and Sealing Machine | High-Speed Glue Filling & Folding Solution
The JGF Series Aluminum Tube Fill and Fold Tail Machine is a high-performance, fully automatic filling and sealing system engineered specifically for aluminum tube packaging . This model represents the most advanced option in the JGF series, featuring automatic tube feeding and automatic orientation capabilities that deliver production speeds of 30-50 tubes per minute . It is ideal for manufacturers of adhesives, sealants, pharmaceuticals, cosmetics, and chemical products who demand precision, speed, and reliability.
The JGF-C stands out for its integrated one-step process: filling, tail-sealing, and batch-number printing are completed simultaneously on a single machine . This streamlined workflow eliminates the need for separate equipment and manual transfers, significantly enhancing production efficiency. The machine is available at a competitive price point and represents Maxwell Automation's commitment to delivering cost-effective, high-performance packaging solutions.
Core Specifications & Model Parameters
Why Choose the JGF-C?
1. Fully Automatic Operation
The JGF-C eliminates manual tube handling, boosting productivity and reducing labor costs. It is engineered for businesses ready to scale from manual or semi-automatic processes .
2. High-Speed & Precision
With a production speed of up to 50 tubes per minute and a measuring error of less than 1% , the JGF-C ensures rapid output without sacrificing quality.
3. “No Wire-Drawing” Technology
The machine is designed to thoroughly solve the common problem of wire-drawing that occurs during the production of adhesives and viscous liquids, ensuring clean and professional tube tails .
4. Robust “Horseshoe” Sealing Mechanism
It adopts the most advanced horseshoe mechanism for direct folding, producing good sealed tails that are neatly folded, strong, and resistant to leakage .
5. Integrated Process
Combines filling, tail-sealing, and printing in one smooth operation , minimizing handling and floor space requirements.
6. Versatile Material Handling
Suitable for both liquid and paste products such as hair dye, cyanoacrylate (502 glue), super glue, shoe polish, toothpaste, and medicine ointment . Its wide filling range (5-300ML) and adjustable tube size capability make it adaptable to various production needs.
Optional Features for Specialized Needs
The JGF-C can be upgraded to meet specific production requirements:
How It Works: The Production Process
The JGF-C operates on a streamlined workflow powered by a pneumatic control system with photoelectric detection :
Automatic Tube Feeding: Tubes are automatically fed from a magazine into the holders on a rotary indexing plate.
Orientation: The machine uses automatic eye marking to orient each tube correctly for filling and sealing.
Filling: A precise volumetric metering pump fills the product into the tube (error < 1%).
Tail Folding: The tube tail is sealed using the advanced horseshoe folding mechanism.
Coding (Optional): Batch numbers or dates are printed on the tube.
Output: The finished product is automatically pushed out from the holder, ready for packaging.
Applications
Adhesives & Sealants (Cyanoacrylate/Super Glue, 502 Glue)
Cosmetics & Personal Care (Hair Dye, Shoe Polish, Toothpaste)
Pharmaceuticals (Medicine Ointment)
Chemical & Industrial Products
Summary Comparison: JGF Series
