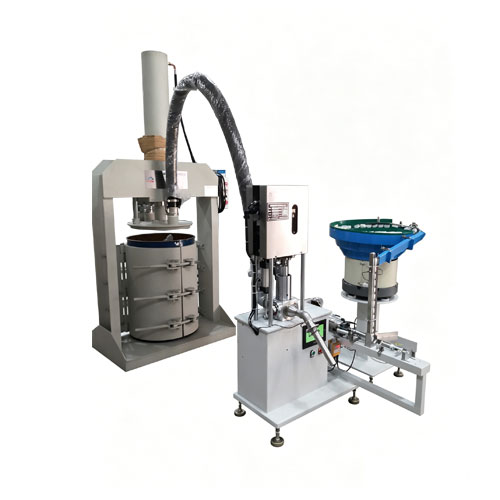

Semi-Automatic Rigid Tube Filling Capping Machine
Product Introduction
This equipment supports both single-component and two-component formulas, with horizontal and vertical frame layouts available for different flow characteristics of raw materials. All models use PLC touchscreen control for straightforward parameter tuning, with a consistent measurement accuracy of ±0.5% to cut material waste and ensure uniform product quality. Operators only need to load empty tubes manually; the machine handles quantitative filling, automatic plunger pressing (capping), and optional batch coding in one streamlined cycle. Custom molds fit 300mL adhesive cartridges and 400mL grease rigid tubes across our BJ series model lineup (BJ-1 through BJ-6).
Working Principle
Manual Tube Loading: Staff places empty rigid cartridges securely into the machine’s positioning fixture; the system detects tube presence before unlocking operation.

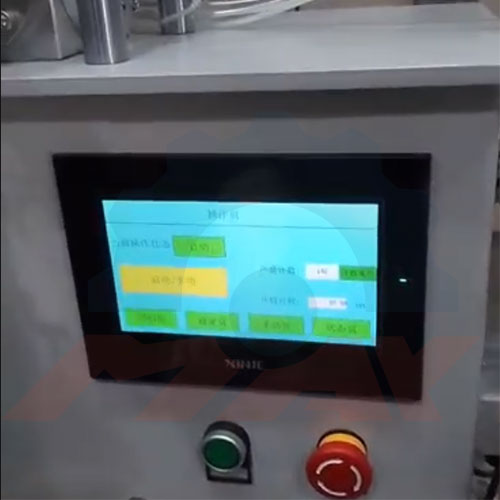

Precision Quantitative Filling: Servo-driven metering cylinders dispense pre-set volumes of paste material into the tube from bottom-up filling to eliminate trapped air bubbles inside the cartridge. Volume values are edited directly on the color touchscreen interface.

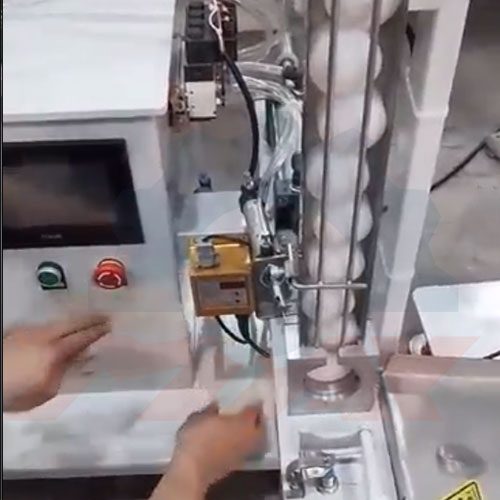

Automatic Capping/Plunger Pressing: A vibrating bowl feeder automatically sorts and feeds plastic plunger stoppers, then the pneumatic press assembly seats and compresses the plunger tightly into the tube opening to seal contents airtight.
Optional Coding Step (1-station upgraded model): Integrated inkjet printer prints batch numbers, production dates or part codes onto finished filled tubes post-capping.
Discharge & Cycle Reset: Completed filled rigid tubes slide out from the workstation, and the machine resets automatically ready for the next tube loading cycle.
Core Functional Features
Compatible with thick paste materials: silicone sealant, MS polymer sealant, water-based adhesive, industrial lubricating grease
Multiple station selections: 1-station (standard Fill+Capping / premium Fill+Capping+Coding), 3-station high-speed version
Dual format cartridge support: 300mL adhesive tubes (BJ1–BJ6) and 400mL grease tubes (BJ1–BJ2)
Adjustable production speed range: 20–35 rigid tubes per minute
Ultra-stable filling precision: ±0.5% volume tolerance
Flexible component setup: single-component machine / Two-component machine
Frame layout options: horizontal design for low-flow pastes, vertical frame for free-flow viscous materials
Full automated post-fill steps: auto tube feeding, quantitative filling, plunger capping, optional automatic coding
Intuitive PLC touchscreen control with saved recipe storage for fast product changeovers
Low-maintenance pneumatic actuation system with wear-resistant filling heads for long service life
| Specification Item | Detailed Data |
|---|---|
| Applicable Materials | Silicone sealant, MS polymer sealant, water-based adhesive, industrial grease & all paste-type adhesives |
| Supported Cartridge Sizes | 300mL adhesive rigid tubes (BJ-1~BJ-6); 400mL grease rigid tubes (BJ-1~BJ-2) |
| Workstation Configurations | 1-station (Fill+Capping / Fill+Capping+Coding); 3-station high-speed filling |
| Production Capacity | 20–35 tubes per minute (adjustable via touchscreen) |
| Filling Measurement Accuracy | ±0.5% |
| Component Type Options | Single-component machine / Two-component machine |
| Machine Frame Structure | Horizontal type, Vertical type (for free-flow raw materials) |
| Operation Flow | Manual tube loading → Auto quantitative filling → Auto plunger capping → Optional auto coding |
| Control System | PLC + Color Touch Screen Human-Machine Interface |
| Feeding System | Vibratory bowl auto-feeder for tube plungers |
| Customizable Extras | Inkjet coding unit, safety light guards, dust-proof enclosures |

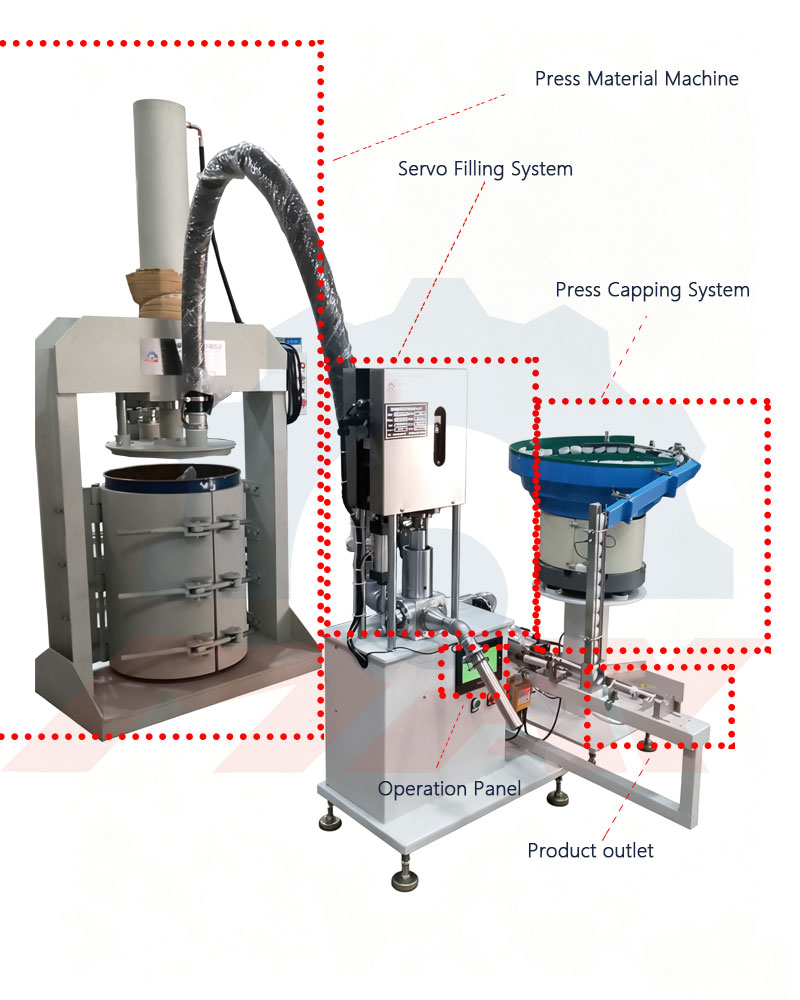

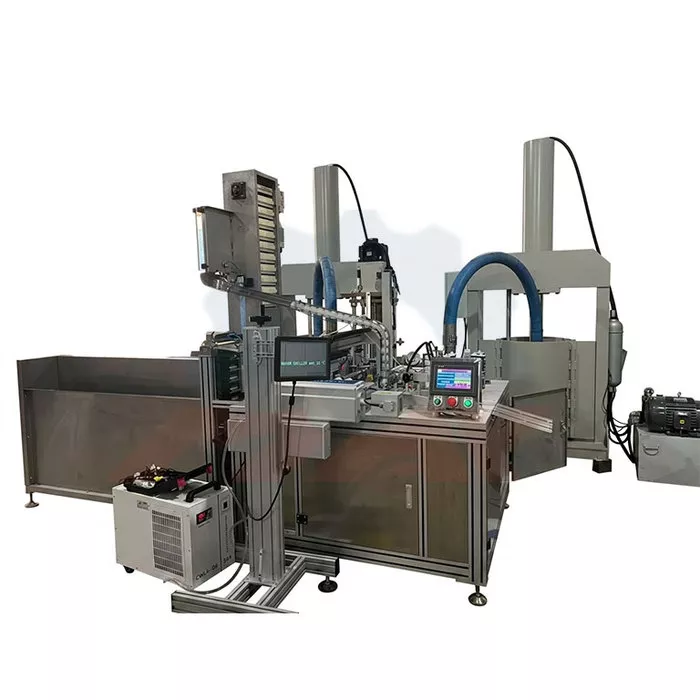

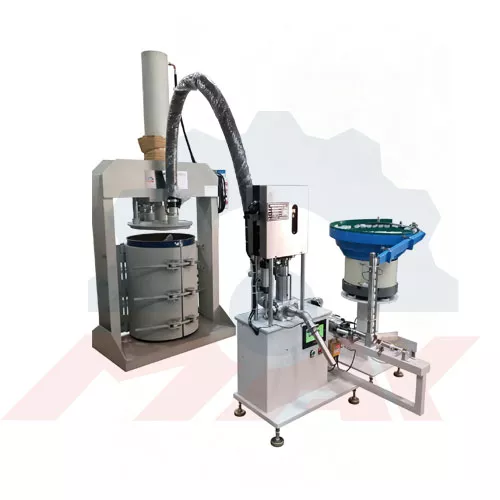

Product structure diagram

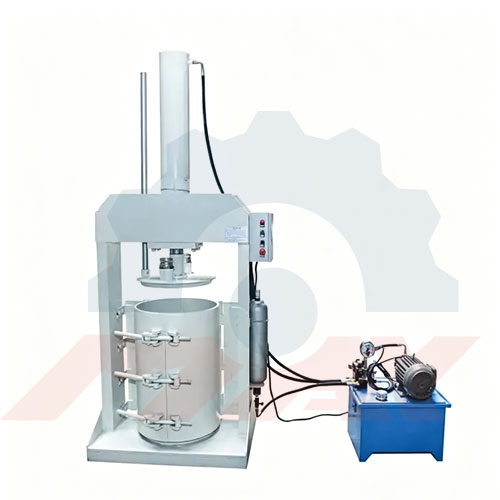

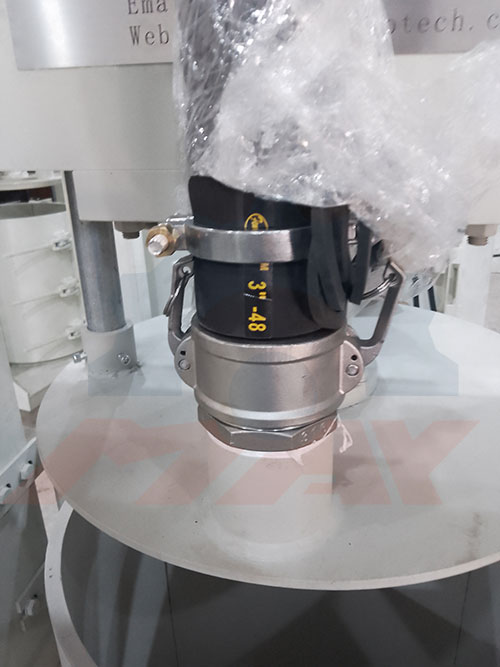

Press Machine Parameter
Equipment name | Press Material Machine |
Type | YJ200-1/YJ200-2 |
Power Supply | AC 3~380V+Nwire /50HZ |
Extrusion force | 45T/60T |
suitable bucket | 200L(Dia570MM*Heigh880MM) standard bucket |
Outlet size | DN65 |
Hydraulic station oil tank | 120L |
motor | 4KW/Hydraulic motor |
Hydraulic station oil size | L650MM*W550MM*H800MM |
Application Scope
Industrial Adhesive Manufacturing
Perfect for packaging neutral silicone sealant, structural MS polymer glue, window & door caulking, construction sealants, waterproof adhesives into standard 300mL rigid cartridges for construction, hardware and window fabrication markets.
Lubrication & Grease Industry
Ideal filling equipment for automotive bearing grease, machinery lubricant, high-temperature industrial grease packed into 400mL rigid grease tubes for auto repair, factory equipment maintenance and heavy machinery sectors.
Chemical & Assembly Production Lines
Suitable for electronic assembly adhesives, metal bonding glues, water-based assembly pastes, two-part epoxy adhesives; single and dual-component machine variants match mixed chemical formula production needs.
Small to Medium Batch Factories
Semi-automatic operation lowers initial investment cost vs fully automatic lines, making it a cost-effective pick for startup adhesive plants, small grease workshops, and custom sealant manufacturers with frequent product formula switches.
