Tackling High-Viscosity Solder Paste Filling: How a Reliable Solder Paste Filling Machine Can Save You Headaches
Tackling High-Viscosity Solder Paste Filling: How a Reliable Solder Paste Filling Machine Can Save You Headaches
If you've ever worked in SMT or PCB manufacturing, you know that solder paste is both a blessing and a curse. It's thick—like extra-strength toothpaste—and getting it to flow cleanly and accurately into syringes is not something just any pump can handle. We learned this the hard way in our shop. We used a generic filling machine, and it either dripped, underfilled, or—worst of all—trapped air bubbles. Come reflow soldering, and we'd see cold joints and voids everywhere. Major headache.

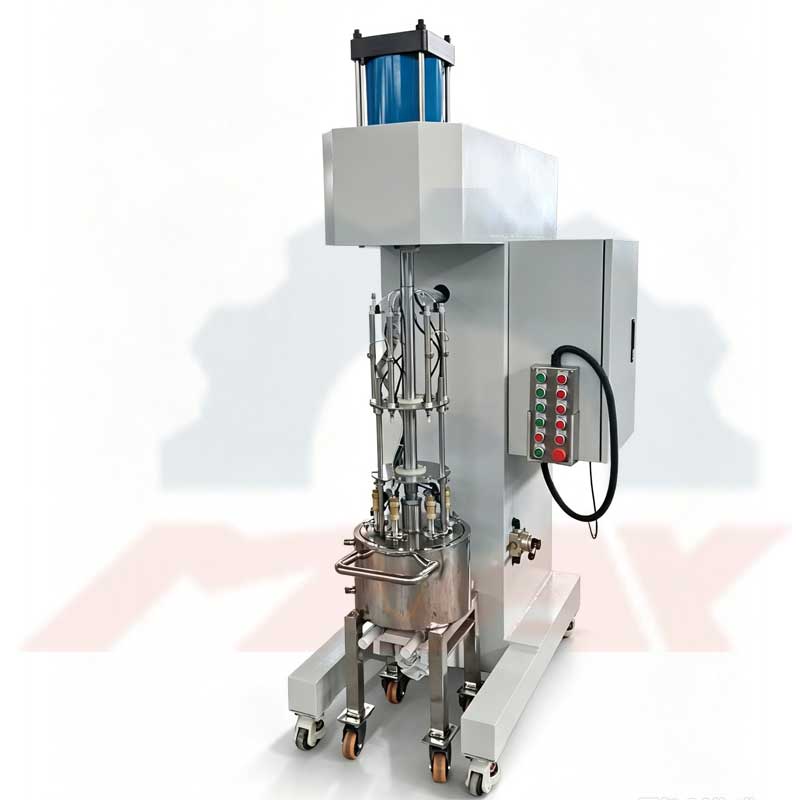

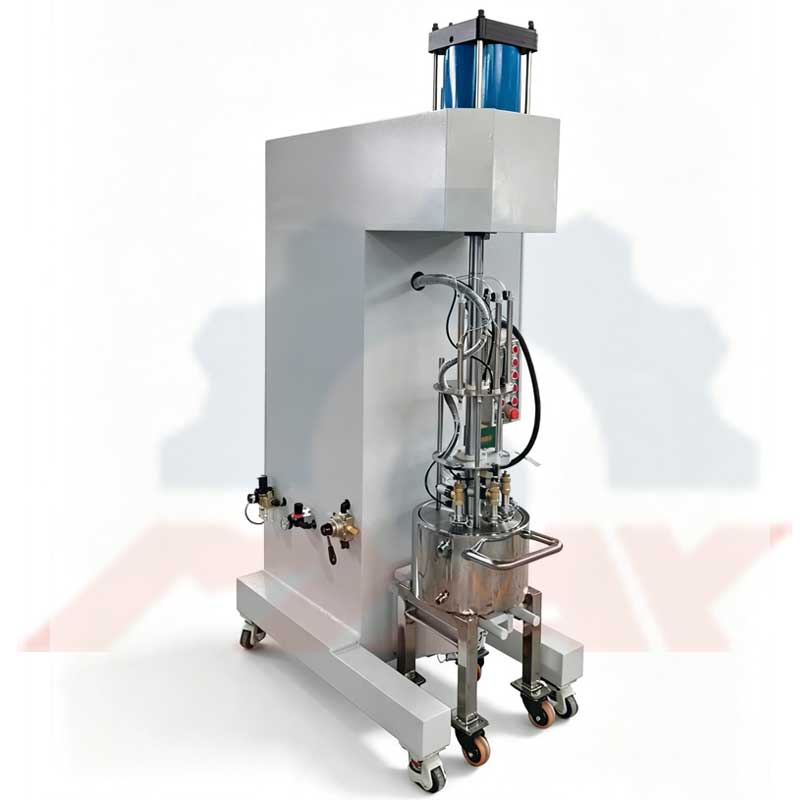

Then we switched to MAXWELL's dedicated Solder Paste Filling Machine (the MAX-MW02 model). That finally put an end to our filling frustrations. So, from our hands-on experience, let's walk through what a good solder paste filling solution should actually solve.
1. It Needs Plenty of Muscle—But Also a Delicate Touch
Solder paste won't budge without serious pressure, but too much pressure, and you lose control over the volume. That's the core conflict. The machine we're using runs on a pneumatic cylinder system—powerful enough to push the paste, yet precise enough to hold filling accuracy within ±1%. For our typical 30ml and 50ml syringes, the preset volumes come out consistent every time. No more overfill or underfill. That saves material and ensures consistent print performance downstream. The equipment specs also list a customizable filling range from 10ml to 500ml, which covers most production needs.
2. Air Bubbles and Contamination Are the Real Enemies
Air entrapment or impurities in solder paste are ticking time bombs. They show up during reflow as voids, splatter, or poor wetting. This machine was clearly designed with that in mind. The material tank includes a dispersion and emulsifying head that keeps the paste homogenized and smooth before filling. All wetted parts are made of SUS304 or SUS316 stainless steel—clean, corrosion-resistant, and durable. We later added a dust cover as an extra precaution, so even in a busy shop floor environment, we don't worry about foreign particles getting in.
3. Great Machines Are Also Easy to Clean
Let's be honest: cleaning solder paste residue is a pain. Once it dries, it's like cement. The feature I appreciate most about this Solder Paste Filling Machine is how easily all the pipes and contact parts come apart for cleaning. At the end of each batch, we disassemble and wash everything in about 15 minutes. Compare that to our old machine, which took 30 minutes and still left us worrying about cross-contamination between batches. The machine itself is solid—300kg of steel-frame construction—so the filling heads don't wobble during operation, ensuring repeatable accuracy.
4. Key Specifications at a Glance
Here's a quick summary of the machine's core parameters:
| Parameter | Specification |
|---|---|
| Model | MAX-MW02 |
| Filling Range | 10ml – 500ml (customizable) |
| Filling Speed | ~20 syringes/minute (varies by viscosity & volume) |
| Measurement Accuracy | ±1% |
| Power Supply | AC380V 50Hz (customizable) |
| Dimensions (L×W×H) | 1300×800×1800 mm |
| Net Weight | 300 kg |
| Material (Wetted Parts) | SUS304 / SUS316 Stainless Steel |
| Application | Syringe filling of viscous solder paste |
5. Real-World Throughput: How Fast Is It?
We primarily use it to supply filled syringes to our SMT lines. The filling speed runs around 20 syringes per minute, though this varies slightly depending on the fill volume and the paste's current viscosity. For our mid- to small-batch flexible production, that's more than enough. The key is consistency—it runs reliably, shift after shift. The machine footprint is 1300×800×1800mm, which fits neatly into our layout, and the standard power is AC380V 50Hz, with customization available if your facility uses a different voltage.
Bottom Line
If you're struggling with high-viscosity material filling, don't just focus on speed specs. Pay close attention to how the equipment handles viscosity, bubble prevention, and—above all—cleanability. Those factors affect your daily efficiency far more than a few extra cycles per minute. Choosing a purpose-built Solder Paste Filling Machine like this one is ultimately about choosing stability, peace of mind, and fewer defects. If you're interested, you can reach out to MAXWELL's Wuxi factory directly or submit your specific solder paste viscosity and syringe specs—they support custom configurations. In our book, that investment pays for itself quickly.
