Optimizing the 20L Vacuum Planetary Mixer for High-Performance Lithium Battery Slurry Production

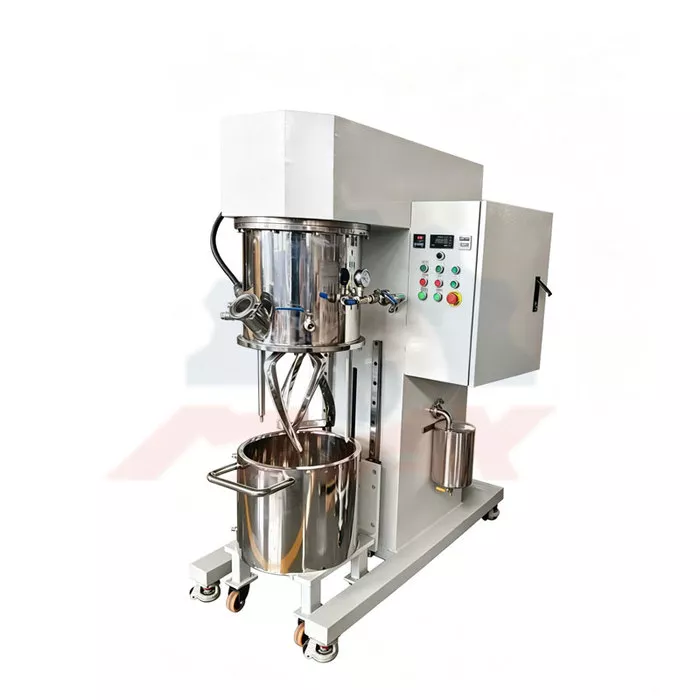

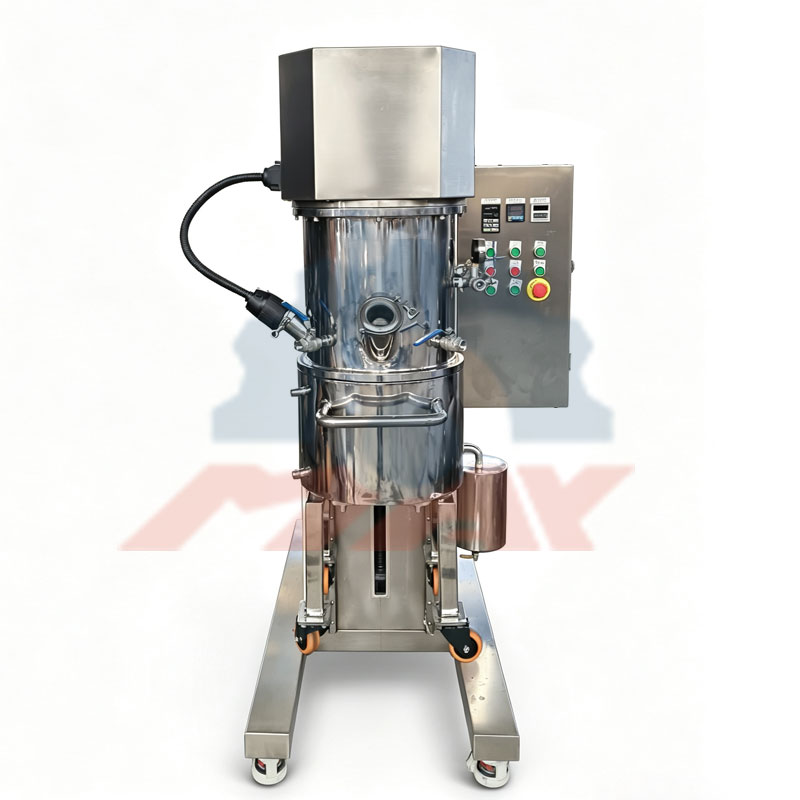

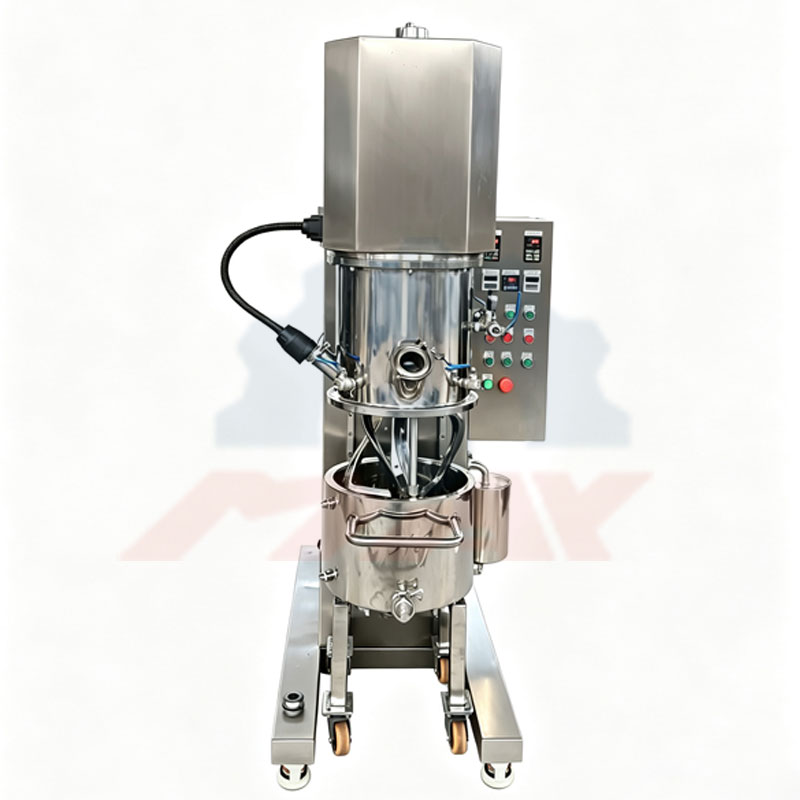

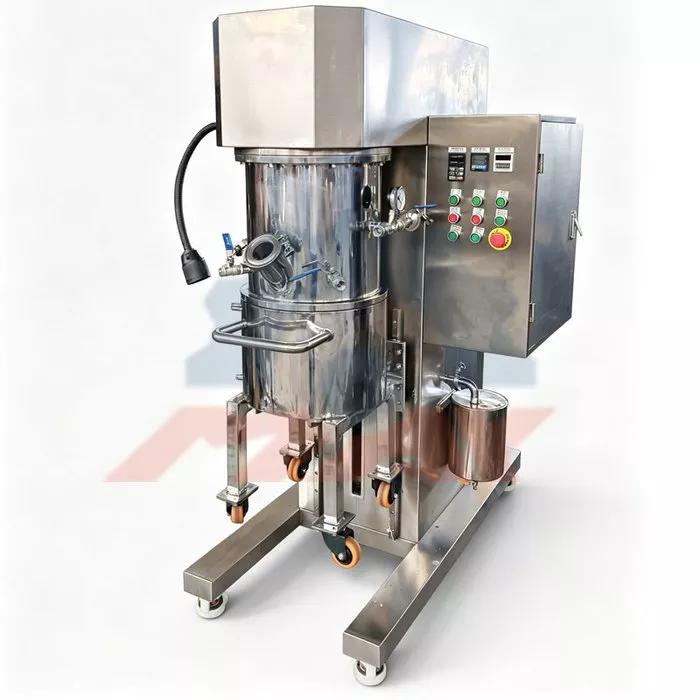

Producing high-quality lithium-ion battery electrode slurry is a complex, multi-step process that demands precise control over mixing parameters, material handling, and environmental conditions. The 20L Vacuum Planetary Mixer (SXJ-20 model) is specifically designed to meet these challenges, providing a scalable platform for R&D and pilot production. This guide provides a detailed protocol for optimizing the use of the 20L mixer to produce consistent, high-performance battery slurries for both cathode (NMC, LFP) and anode (Graphite, Si-C) applications.

Phase 1: Pre-Mixing Preparation and Material Handling

The success of the slurry mixing process begins before any material enters the mixing vessel. Raw materials, particularly PVDF binder and conductive carbon black (e.g., Super P), are often hygroscopic and must be dried to remove moisture. PVDF is typically pre-dissolved in NMP solvent (for cathodes) or water (for aqueous anodes) to form a homogeneous binder solution. This pre-dissolution step is best performed in a separate vessel using a magnetic stirrer or low-shear mixer for several hours to ensure complete polymer swelling and dissolution. The 20L mixer's vacuum system can be used to suction these pre-mixed solutions directly into the main tank, minimizing dust and contamination. In the case of solvent-based slurries, the entire process area must be equipped with appropriate ventilation and adhere to safety protocols for handling flammable materials like NMP.

Phase 2: Mixing Sequence and Parameter Control

The order of material addition and the specific mixing parameters are critical for achieving optimal slurry properties. A recommended sequence for the 20L mixer is as follows:

1. Initial Charge: Add the pre-dissolved binder solution and a portion of the solvent to the 20L tank.

2. Powder Addition: Under vacuum (-0.09 MPa), slowly suction the dried active material powders and conductive additives into the tank. The vacuum prevents dust from escaping and helps with the initial wetting of the powders.

3. Low-Speed Incorporation: Engage the planetary mixer at a low revolution speed (e.g., 20-30 rpm) and self-rotary speed (e.g., 40-60 rpm) for 15-20 minutes. This gently kneads the materials together without splashing.

4. High-Speed Dispersion: After the powder is incorporated, increase the disperser speed to 1,500-2,500 rpm (depending on the specific material and loading). Maintain this speed for 60-120 minutes. The high shear forces break down agglomerates of carbon black and active material, creating a uniform dispersion. The planetary mixer continues to operate during this stage to ensure wall scraping and bulk mixing.

5. Vacuum Deaeration and Final Mixing: After dispersion, reduce the disperser speed to 0 and continue the planetary mixer at a low speed (20-30 rpm) for an additional 30-60 minutes under full vacuum (-0.09 MPa). This final step removes all entrapped air and ensures a dense, bubble-free slurry. The temperature of the jacket should be controlled (e.g., 25-40°C) to maintain a stable slurry viscosity.

Phase 3: Slurry Characterization and Quality Control (QC)

After the mixing cycle is complete, the slurry must undergo rigorous QC to confirm it meets the required specifications. This is critical for ensuring consistent battery performance. Key tests include:

• Rheology (Viscosity) Measurement: A rotational rheometer is used to measure the viscosity at a specific shear rate. This ensures the slurry has the correct flow properties for the coating process. Consistent viscosity is essential for achieving a stable coating weight.

• Particle Size Distribution: A laser diffraction analyzer is used to confirm that all agglomerates have been broken down and that the particle size is within the target range (e.g., D90 < 2-3 µm).

• Solid Content: A small sample of the slurry is weighed and dried in an oven to confirm the solid percentage is correct, ensuring the correct active material loading in the electrode.

• Visual Inspection: The slurry is visually inspected for any lumps, bubbles, or gel particles. It should be smooth and uniform with a glossy appearance.

Phase 4: Discharge and Downstream Integration

Once the slurry passes QC, it must be discharged for the coating process. The 20L Vacuum Planetary Mixer provides two primary methods. For low-to-medium viscosity slurries, the mixing vessel can be disconnected from the mixer head via the electric lifting system and wheeled to a coating station for manual decanting. For high-viscosity, thixotropic pastes, the optional hydraulic presser attachment is the preferred method. The presser applies positive pressure to the tank, extruding the bubble-free, homogeneous slurry directly into a holding tank or the hopper of a coating machine. This method is clean, reduces material loss, and prevents re-introduction of air bubbles. The downstream equipment should be calibrated and ready to receive the slurry immediately to prevent any changes in rheology due to settling.

Phase 5: Standardized Cleaning Protocol (CIP)

A standardized cleaning protocol is essential for the 20L mixer, especially when switching between different formulations (e.g., cathode to anode) or when processing solvent-based slurries. The protocol should be documented and strictly followed. For NMP-based slurries, a typical sequence includes:

1. Initial Rinse: Add a small amount of fresh NMP solvent to the tank and run the mixer at low speed for 15-20 minutes to dissolve the bulk of the residue.

2. Mechanical Cleaning: Lift the mixer head and use appropriate scrapers and brushes to remove any remaining thick paste from the tank walls, blades, and disperser shaft. The electric lifting system provides excellent access for this step.

3. Solvent Wipe Down: Wipe all interior surfaces with a clean cloth soaked in the appropriate solvent.

4. Final Rinse: Perform a final solvent rinse cycle.

5. Visual Inspection: Ensure the tank is perfectly clean and free of any residue before starting the next batch. All cleaning materials and waste solvent must be disposed of according to local environmental regulations.
