Complete Solutions for Adhesive Tube Filling: Integrating the SGF-40R-Y with Your Production Line
Adhesive manufacturers face multiple challenges in their packaging operations:
Product Sensitivity: Many adhesives react to temperature, moisture, or light
Viscosity Management: Thick products don't flow easily, complicating filling
Precision Requirements: Even small overfills waste expensive materials
Quality Standards: Consistent seals are essential to prevent leakage
Regulatory Compliance: Traceability through batch coding is often required
Labor Costs: Manual filling is labor-intensive and inconsistent

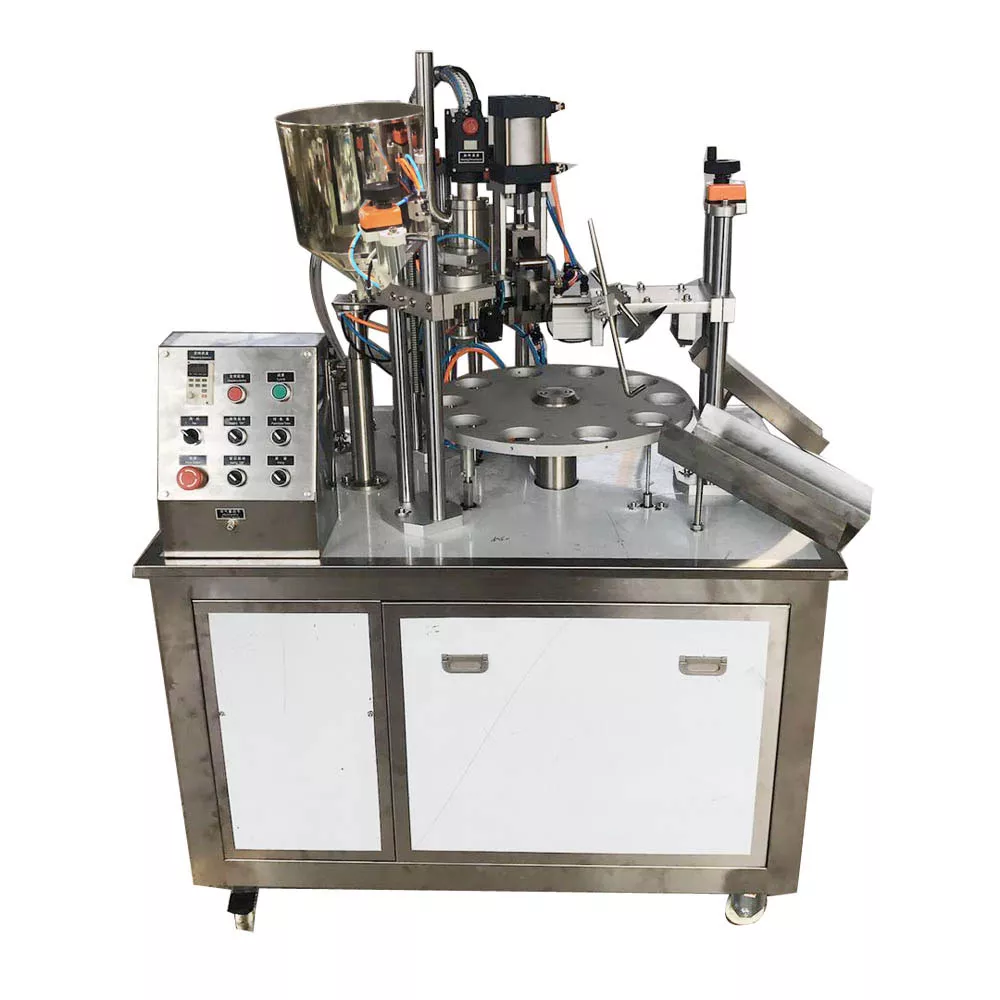

The SGF-40R-Y semi-automatic tube fill and seal machine addresses each of these challenges, providing a comprehensive solution for small-to-medium adhesive manufacturers.
Solution Overview
The SGF-40R-Y integrates multiple functions into a single, cost-effective machine:
Precision Filling: Volumetric metering with ±1% accuracy
Temperature Control: 3.3KW heating system with automatic LCD control
Reliable Sealing: Proven sealing mechanism for leak-proof tube tails
User-Friendly Operation: Semi-automatic design that minimizes training needs
Flexible Sizing: Customizable fill volumes (50-250ml)
Optional Cooling: Water chiller for temperature-sensitive materials
Workflow Integration
The SGF-40R-Y fits into a complete production line as follows:
Material Preparation: Adhesive is prepared and conditioned to optimal temperature
Manual Tube Loading: Empty tubes are placed into machine holders
Automatic Filling: Machine fills each tube with precise volume (50-250ml)
Automatic Sealing: Tube tail is sealed using reliable sealing mechanism
Manual Removal: Operator removes filled, sealed tubes
Quality Inspection: Visual and weight checks
Packaging: Tubes are packed for shipping or retail
System Components
| Component | Function |
|---|---|
| SGF-40R-Y Main Unit | Filling and sealing operation |
| Heating Air Fan (3.3KW) | Maintains optimal filling temperature |
| LCD Temperature Controller | Automatic temperature regulation |
| Water Chiller (optional, 60kg) | Provides cooling for temperature-sensitive materials |
| Pneumatic System | Supplies air pressure (>0.4 MPa) for operation |
Customization Options for Specific Needs
| Application | Recommended Configuration |
|---|---|
| Super glue/502 glue | SGF-40R-Y + Gas protection (optional) |
| Nail glue | SGF-40R-Y standard configuration |
| Cosmetic creams | SGF-40R-Y + Dust cover (optional) |
| Pharmaceutical ointments | SGF-40R-Y + Batch coding (optional) |
| Junction box glue | SGF-40R-Y (for smaller tube sizes) |
Integration with Other Equipment
The SGF-40R-Y can be integrated with:
Batch coding systems: For traceability
Conveyor systems: For continuous production
Packaging equipment: For complete packaging lines
Mixing equipment: For material preparation
As a liquid glue material filling machine, the SGF-40R-Y works well in combination with Maxwell's mixing and homogenizing equipment to create complete production solutions.
Technical Support and Service
Maxwell Automation provides comprehensive support:
2-year standard warranty
24-hour technical support response
Remote video troubleshooting
On-site commissioning and maintenance
Operator training available
Return on Investment
For a manufacturer producing 10,000 tubes per month:
| Metric | Before SGF-40R-Y | After SGF-40R-Y |
|---|---|---|
| Speed | 10/min | 30/min |
| Operators | 4 | 1 |
| Precision | Poor | ±1% |
| Monthly labor | $10,000 | $2,500 |
| Monthly waste | $1,500+ | <$500 |
| Monthly savings | — | $8,500+ |
Estimated payback period: 1-2 months
Why Choose Maxwell Automation?
With over 18 years of experience and CE/ISO9001 certification, Maxwell Automation is a trusted glue filling machine supplier for manufacturers worldwide. Our solutions are designed for:
Reliability: Robust construction for continuous operation
Precision: Advanced metering technology
Flexibility: Customizable options for diverse products
Support: Responsive technical service team
Get Started
Whether you need a single glue filling and sealing machine or a complete production solution, Maxwell Automation's engineering team can design a system that meets your production requirements and budget.
Contact us to discuss your application and receive a customized proposal.
