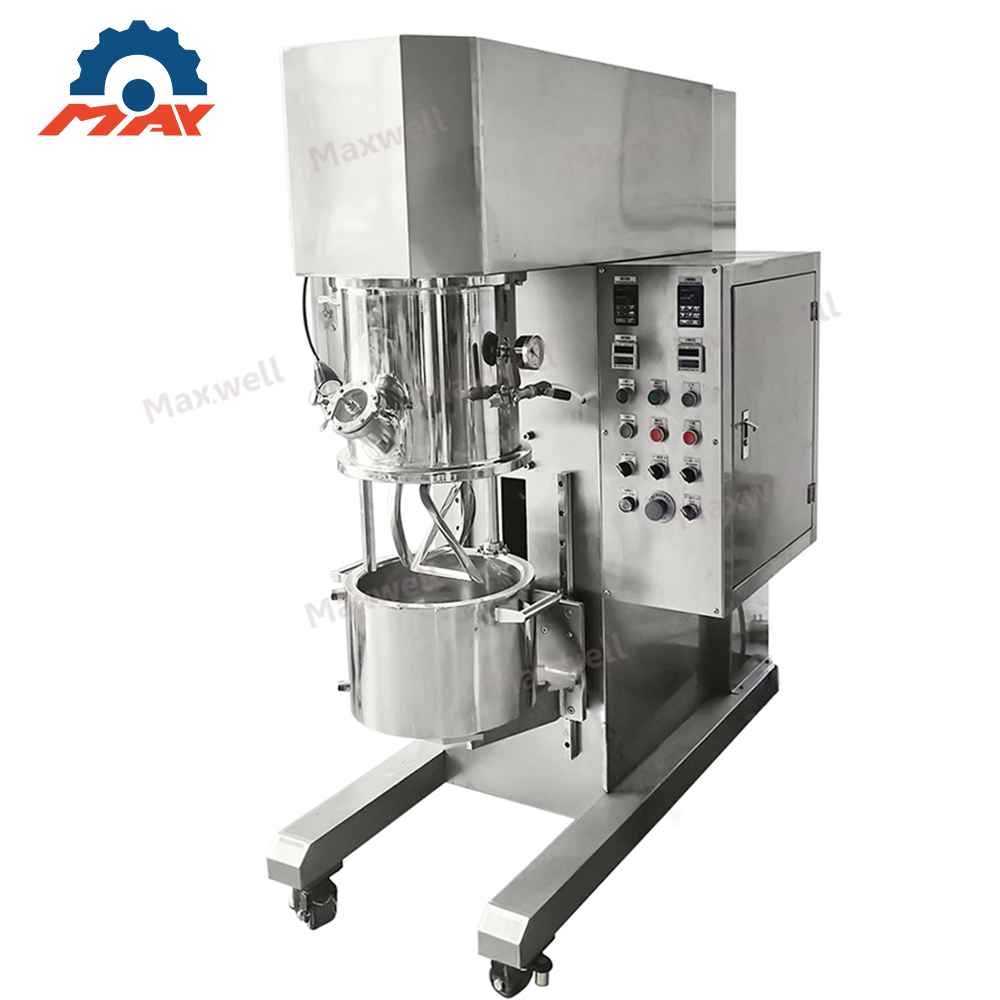

10L Lab Vacuum Double Planetary Mixer
In the fields of new energy, fine chemicals, electronics, pharmaceuticals, and food development, the ability to efficiently and consistently handle high-viscosity, high-solid-content slurries is often the key factor determining product performance and R&D progress. Wuxi Maxwell Automation Technology Co., Ltd., with over 18 years of industry experience, offers the 10L Laboratory Vacuum Double Planetary Mixer (Model: SXJ-10) – a professional device integrating mixing, dispersion, and degassing, specifically designed for laboratory R&D and small-batch production scenarios .
Working Principle: The Synergy of Planetary Motion and Vacuum Environment

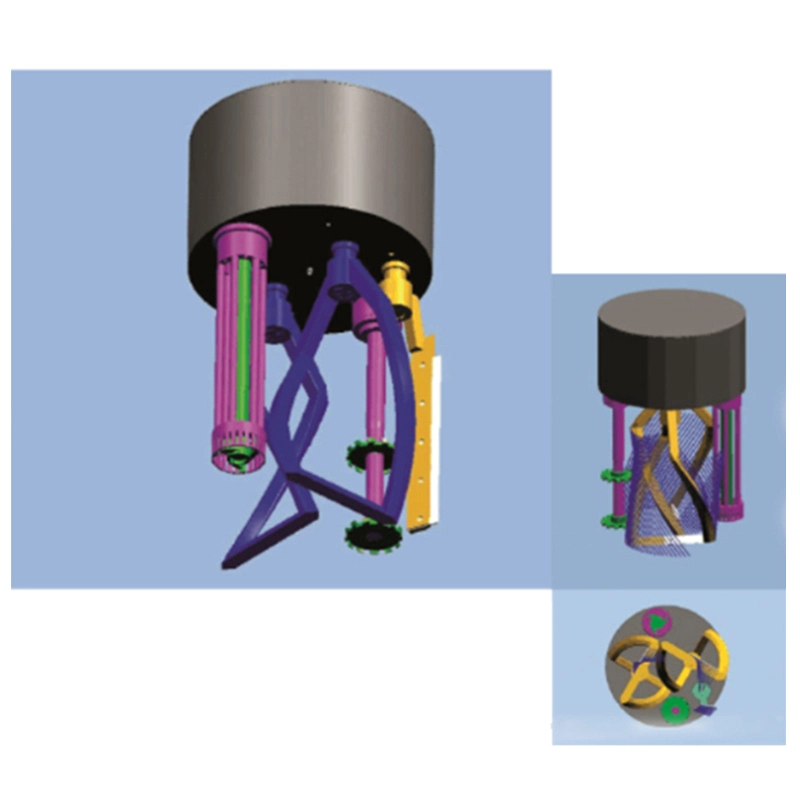

The term "double planetary" refers to the mixer's unique motion pattern. During operation, the low-speed mixing blades and high-speed dispersion disc rotate around the mixing vessel's central axis (revolution) while simultaneously rotating on their own axes (rotation). This compound motion generates strong shearing and kneading forces, causing materials to circulate comprehensively and achieve uniform mixing at both macro and micro levels in a short time.
Simultaneously, the integrated vacuum system (achieving a vacuum level down to -0.09 MPa) effectively removes air bubbles entrapped during mixing . This is critical for applications like lithium battery slurries, electronic adhesives, and high-end cosmetics, where product density and stability are paramount.
Core Technical Specifications
Diverse Application Fields
The SXJ-10L mixer's design caters to the common needs of R&D across numerous industries, covering a wide range from high-viscosity pastes to powder mixtures:
Energy Sector: Preparation of various battery pastes including lithium battery, nickel-chromium, nickel-metal hydride, and fuel cells .
Electronics & Appliances: Solder paste, ceramic slurry, magnetic materials, electronic adhesives, PVC plastics, electronic potting glue, hot melt adhesives .
Chemical Industry: Various sealants, adhesives (silicone, polysulfide, structural insulating glass, waterproof, anaerobic), synthetic resins, rubber, printing inks, putty, abrasives, wax products .
Pharmaceuticals: Various ointments, polymer gels (medical patches, cooling sticks), ophthalmic and dental preparations .
Cosmetics & Food: Creams, lipsticks, lotions, gels, facial masks, mascara, foundations, nail polish, toothpaste, soaps, jams, seasonings, and chocolate syrup .
Structural and Design Advantages
No Dead Corners: A wall scraper attached to the planetary frame continuously scrapes material from the vessel wall, ensuring no unmixed zones .
Versatile Agitator Options: Mixing heads can be tailored with options like twist-type, blade-type, frame-type impellers, as well as high-speed dispersion discs and homogenizers, to suit different material characteristics .
Convenient Operation & Cleaning: The cover is hydraulically lifted, and the mixing vessel is movable, facilitating easy feeding, sampling, and cleaning .
Temperature Control & Safety: The vessel can be jacketed for heating or cooling; an optional explosion-proof design ensures safety when handling solvents or flammable materials .
