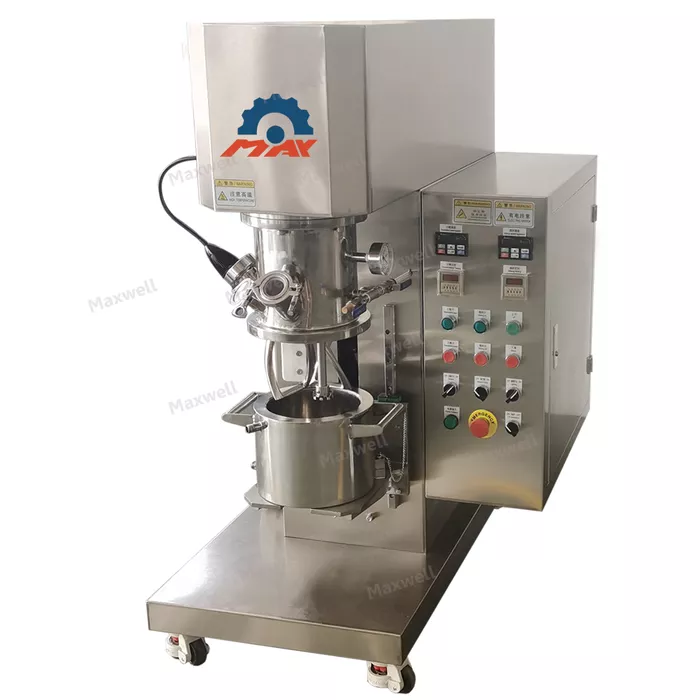

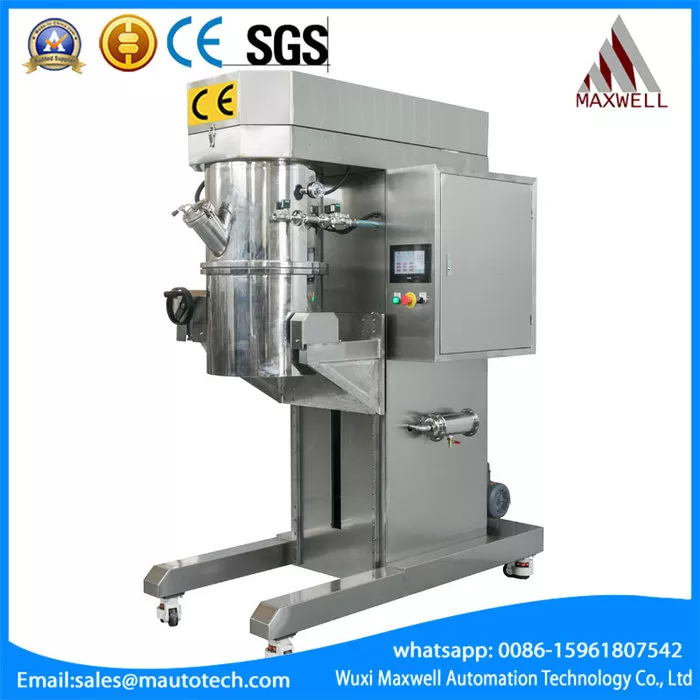

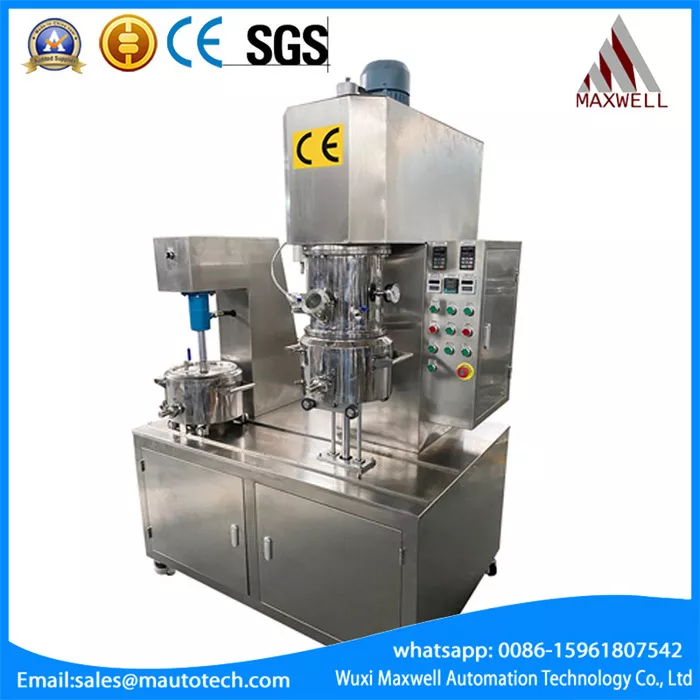

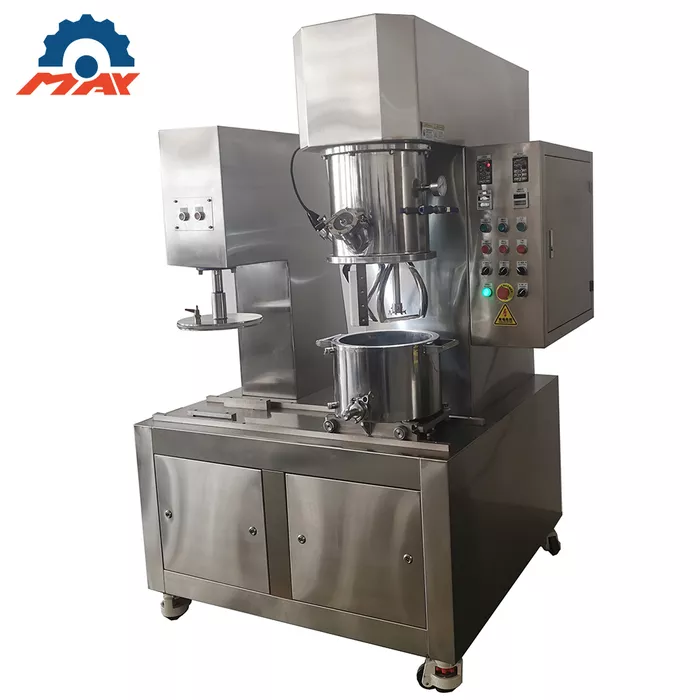

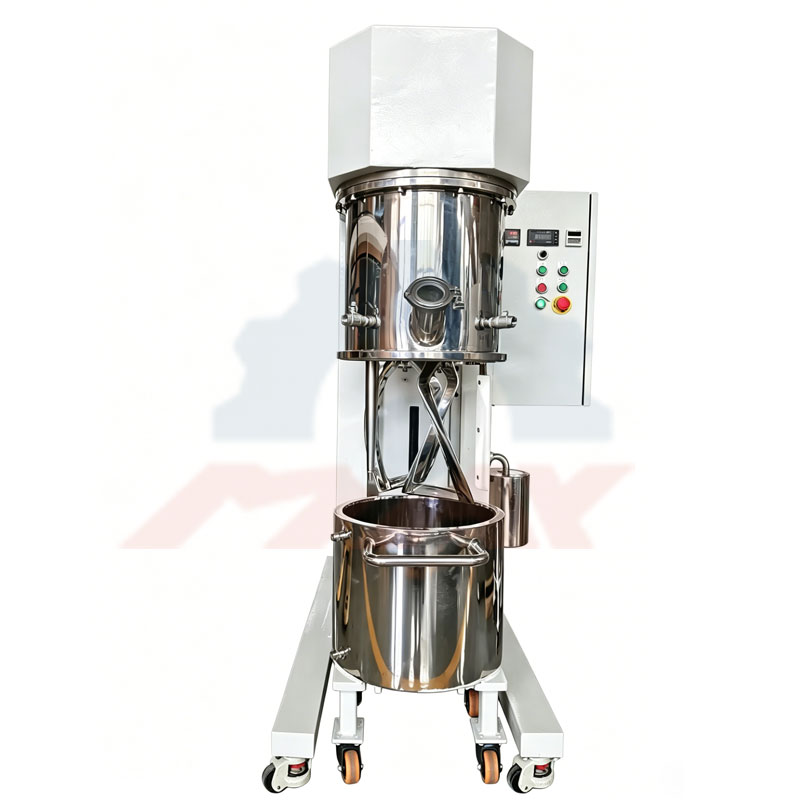

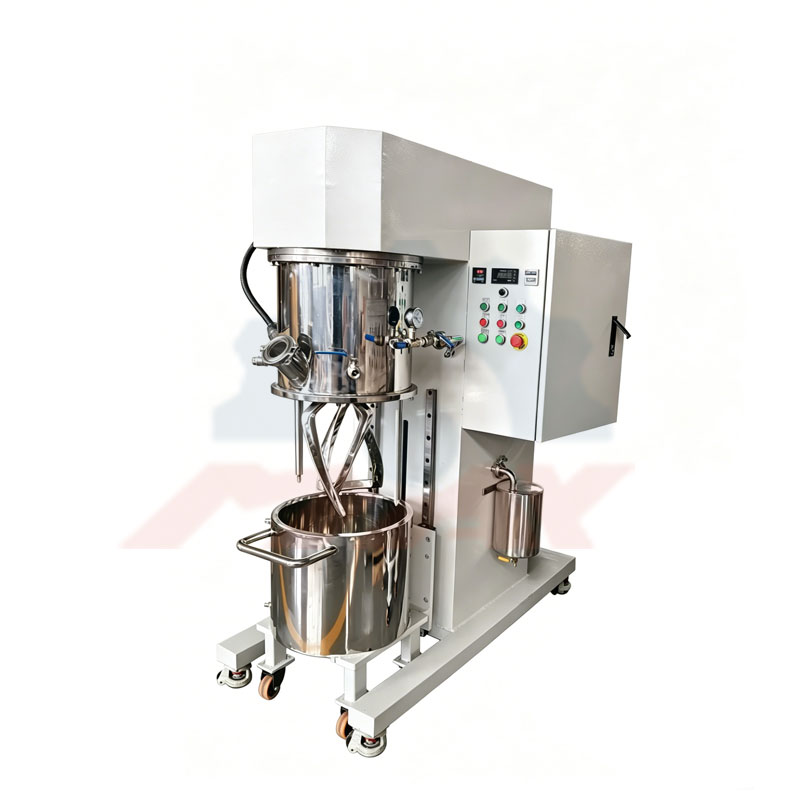

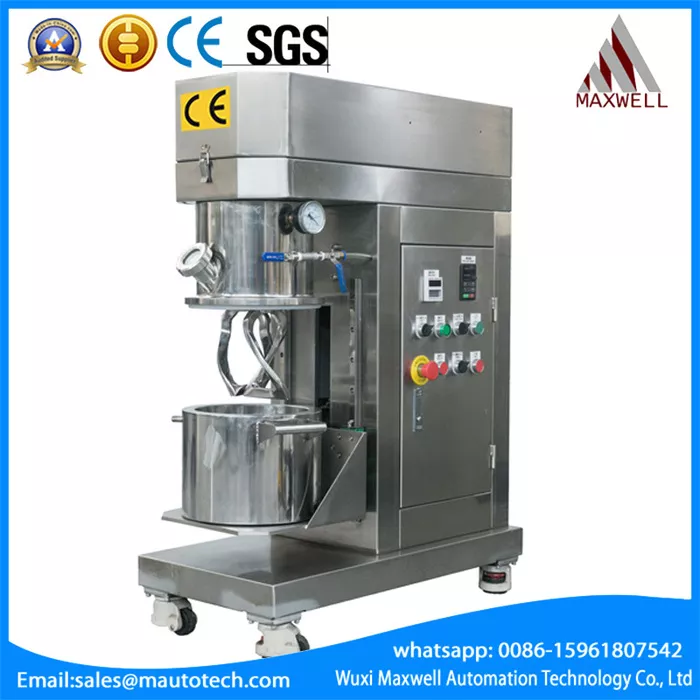

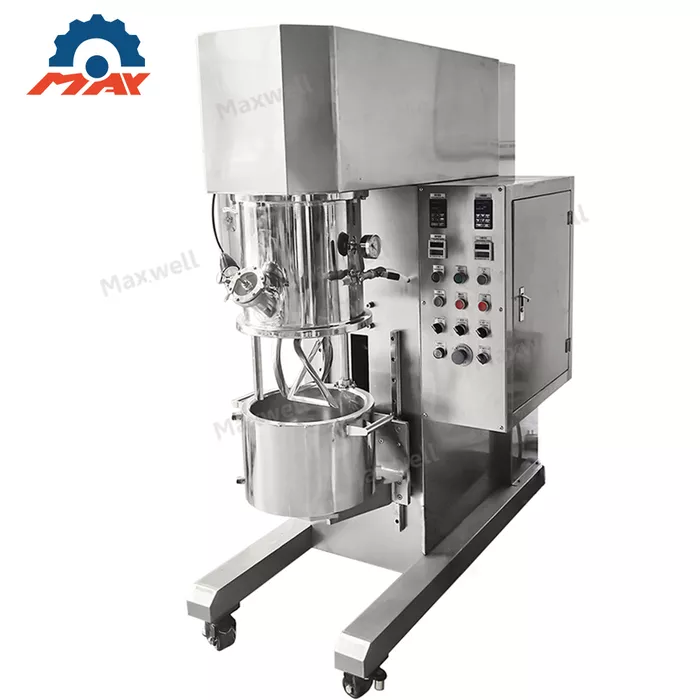

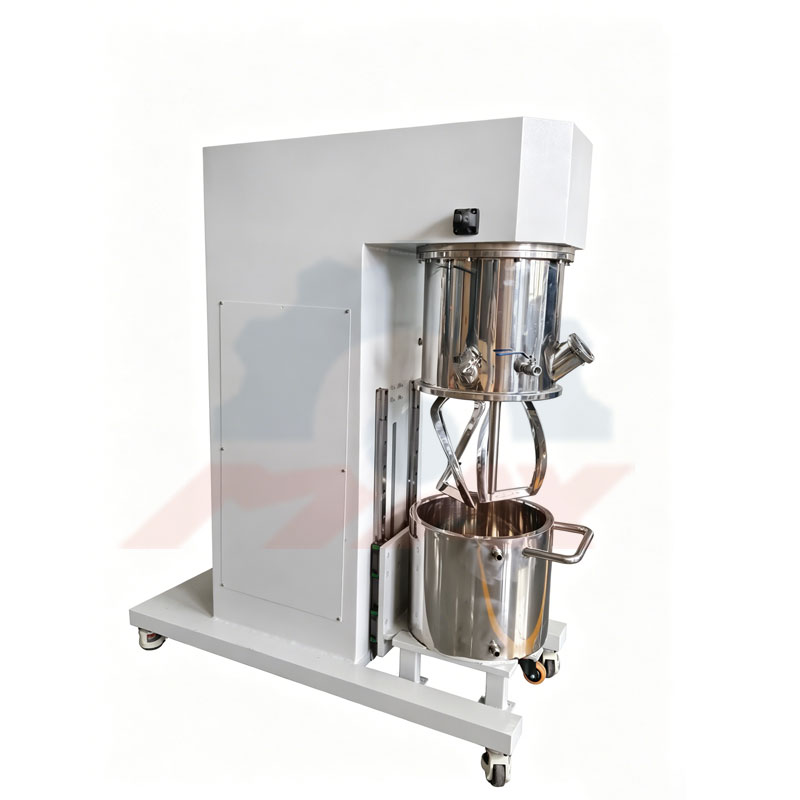

30L Vacuum Double Planetary Mixer | Lab & Industrial Mixing Machine
The 30L Vacuum Double Planetary Mixeris a laboratory and pilot-scale high-efficiency mixing machine designed for medium to high viscosity materials.
It is based on Maxwell industrial mixing architecture, combining:
Double planetary stirring system
High-speed dispersion system
Wall scraping system
Vacuum deaeration system
This structure ensures no dead corners, high uniformity, and stable batch mixing quality.
It is widely used in:
Epoxy resin
Silicone sealant
Adhesives
Solder paste
Battery slurry (lab scale)
Electronic chemical materials

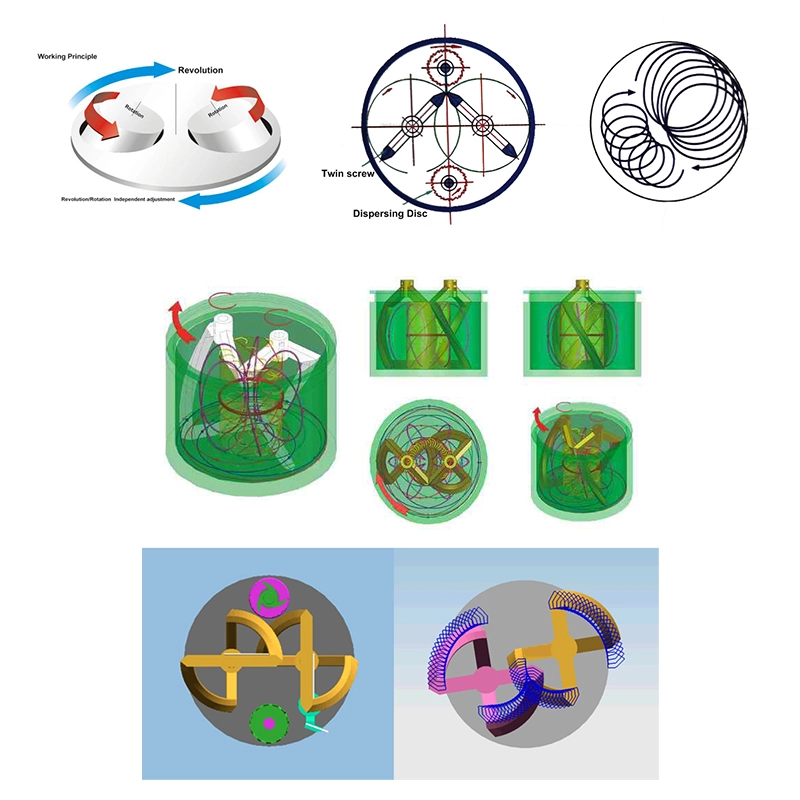

Working Principle
The mixer uses a dual planetary motion + vacuum + scraping + dispersion system.

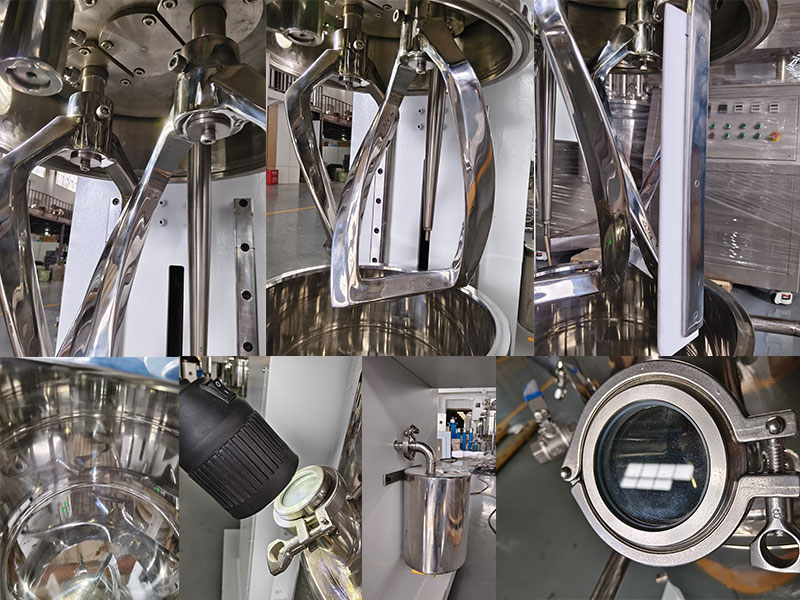

1. Planetary Motion System
Two agitators rotate while revolving inside the tank.
✔ No dead zone
✔ High mixing uniformity
✔ Strong kneading effect
2. Scraper System
Scraper removes material from tank wall continuously.
✔ Prevents material sticking
✔ Improves mixing efficiency
✔ Ensures full circulation
3. Vacuum System
Vacuum environment removes air bubbles.
✔ Bubble-free material
✔ Higher density
✔ Improved product stability
Applications
Chemical Industry
Epoxy resin
Silicone sealant
Structural adhesives
Electronics Industry
Solder paste
Electronic slurry
Conductive adhesives
Energy Materials
Battery slurry (lab scale)
Conductive paste
Coating Industry
Pigments
Resin coatings
Printing inks
Technical Specs
| Parameter | Value |
|---|---|
| Model | SXJ-30 |
| Type | Vacuum Double Planetary Mixer |
| Volume | 30L |
| Revolution speed | 0–42 rpm adjustable |
| Mixing rotary speed | 0–97 rpm adjustable |
| Scraper speed | 0–42 rpm adjustable |
| Dispersion speed | 2980 rpm adjustable |
| Vacuum level | -0.09 MPa |
| Material | SUS304 / SUS316 stainless steel |
