250L Vacuum Double Planetary Mixer | Lithium Battery Slurry Machine

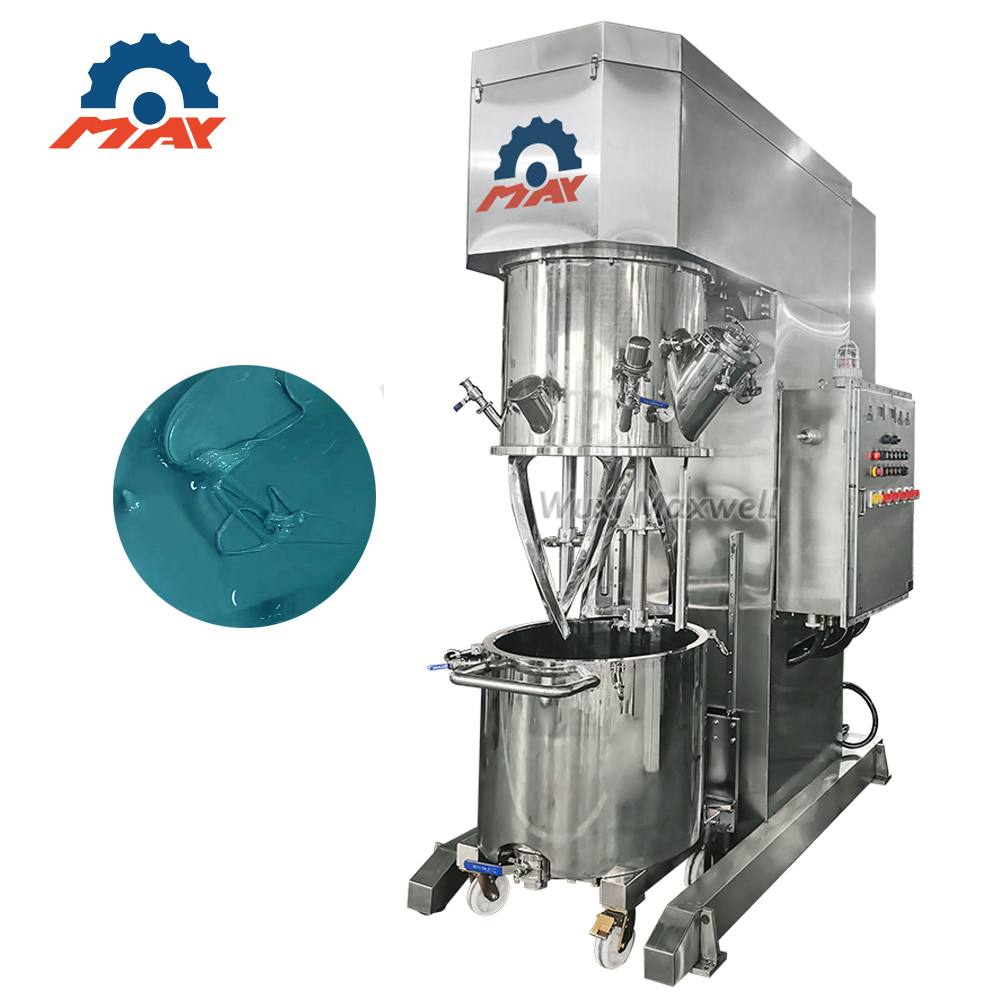

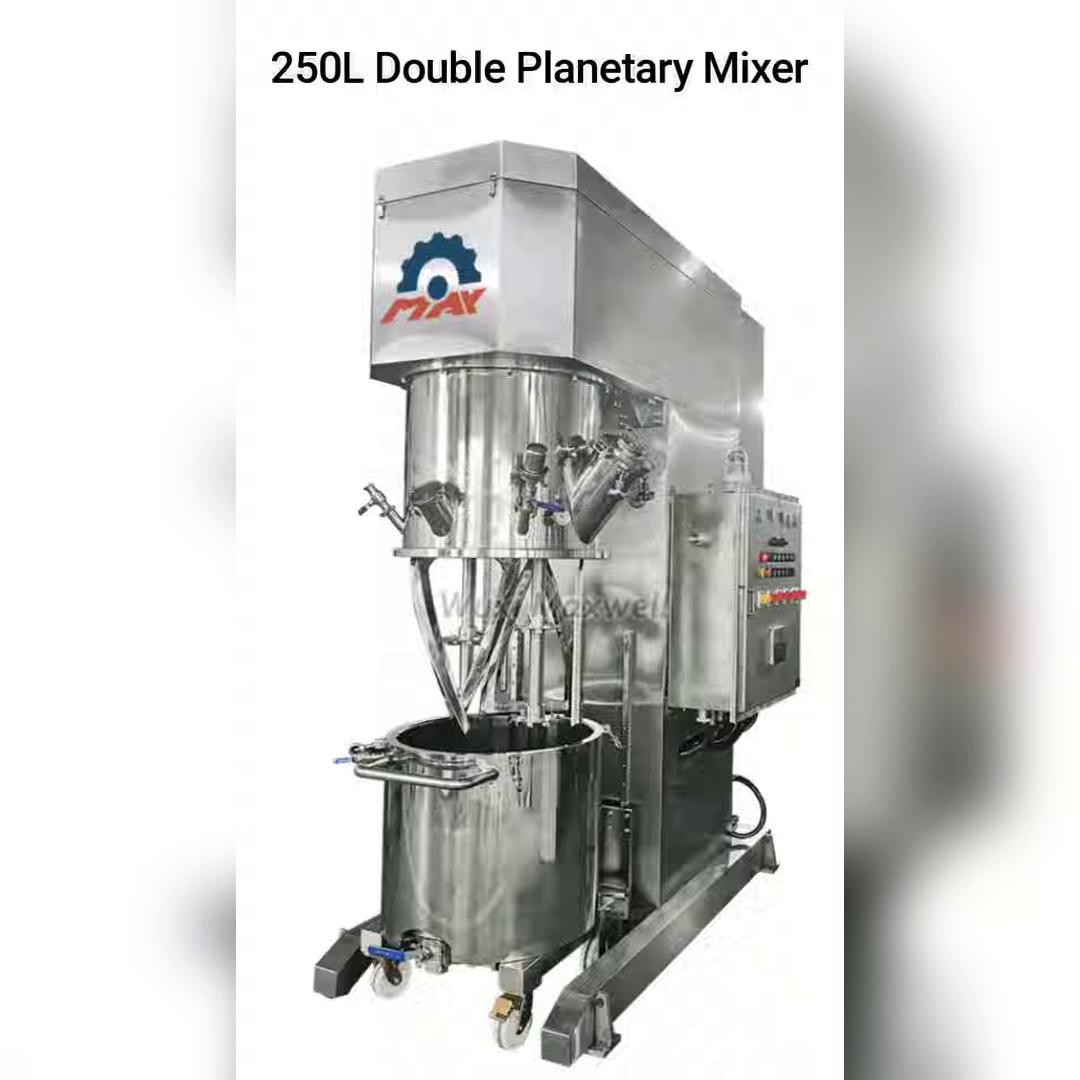

The 250L Vacuum Double Planetary Mixer (Type: MAX-ZJR-250) is an industrial high-efficiency mixing system designed for large-scale production of high-viscosity materials.
Based on Maxwell mixing technology architecture, this equipment integrates:
Double planetary mixing system
High-speed dispersion system
Vacuum deaeration system
Hydraulic lifting structure
High-torque kneading mechanism
It is widely used in:
Lithium battery slurry (LFP / NCM / graphite)
Epoxy resin
Silicone sealant
Adhesives
Coatings
Chemical paste materials
The system ensures uniform dispersion, stable viscosity, and bubble-free mixing quality, making it suitable for industrial mass production.
Working Principle
The system uses a dual planetary motion system combined with vacuum and high shear dispersion technology.
1. Planetary Mixing System
Two agitators rotate while revolving inside the tank.
✔ No dead zones
✔ Full material circulation
✔ High uniformity
2. High-Speed Dispersion System
High-speed disperser breaks agglomerates in powders and slurry.
✔ Faster mixing
✔ Better particle refinement
✔ Improved conductivity in battery slurry
3. Vacuum Deaeration System
Vacuum removes trapped air bubbles during mixing.
✔ Higher density
✔ Better coating quality
✔ Reduced defects
H2 Applications
Lithium Battery Industry
Lithium-ion battery slurry
Conductive paste
Chemical Industry
Epoxy resin
Silicone sealant
Polyurethane adhesives
Coating Industry
Pigments
High-viscosity coatings
Other Industries
Industrial gels
Sealants
Adhesives
Technical Specs
| Parameter | Value |
|---|---|
| Model | MAX-ZJR-250 |
| Type | Vacuum Double Planetary Mixer |
| Volume | 250L |
| Speed | 0–42 rpm (planetary system reference from Maxwell 250L series) |
| Vacuum level | -0.09 MPa |
| Material | SUS304 / SUS316 stainless steel |
| Power | 11–30 kW (industry reference, depends on viscosity & configuration) |
