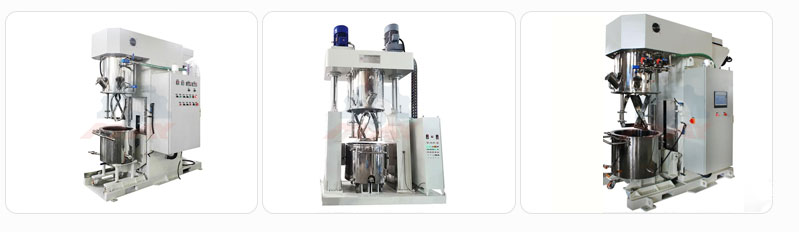

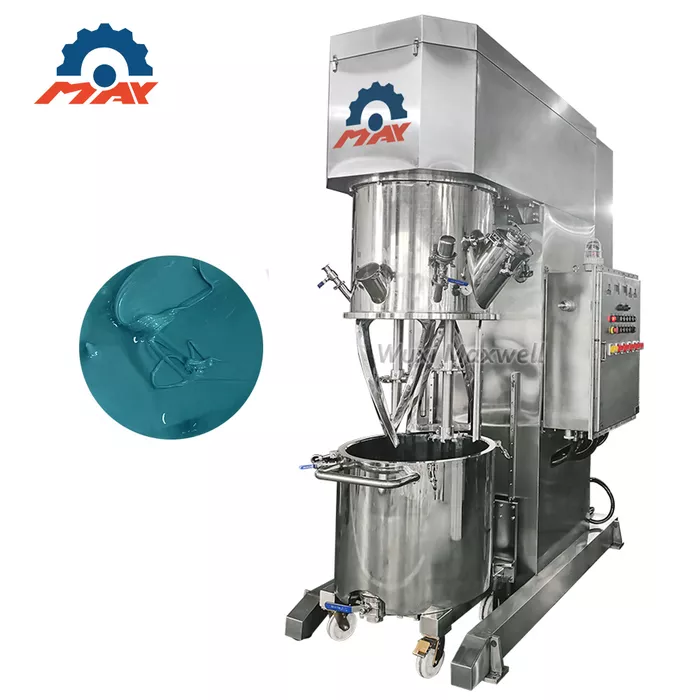

850L Vacuum Double Planetary Mixer | Lithium Battery Slurry Equipment
The 850L Vacuum Double Planetary Mixer is a large-scale industrial mixing system designed for high-viscosity lithium battery slurry production.
Based on industrial design principles widely used in advanced mixing equipment such as Maxwell vacuum planetary mixers, this system integrates:
Planetary stirring
High-speed dispersion
Vacuum deaeration
High-torque kneading
It is widely used in the production of lithium-ion battery electrode slurries, including LFP, NCM, graphite anode, silicon-carbon composites, and energy storage materials.
The system ensures uniform dispersion, stable viscosity control, and bubble-free slurry output, which is critical for high-performance battery manufacturing.
Working Principle
The mixer works through a dual planetary motion system combined with high-speed dispersion technology, similar to industrial vacuum mixers used in Maxwell mixing systems.
1. Planetary Mixing Motion

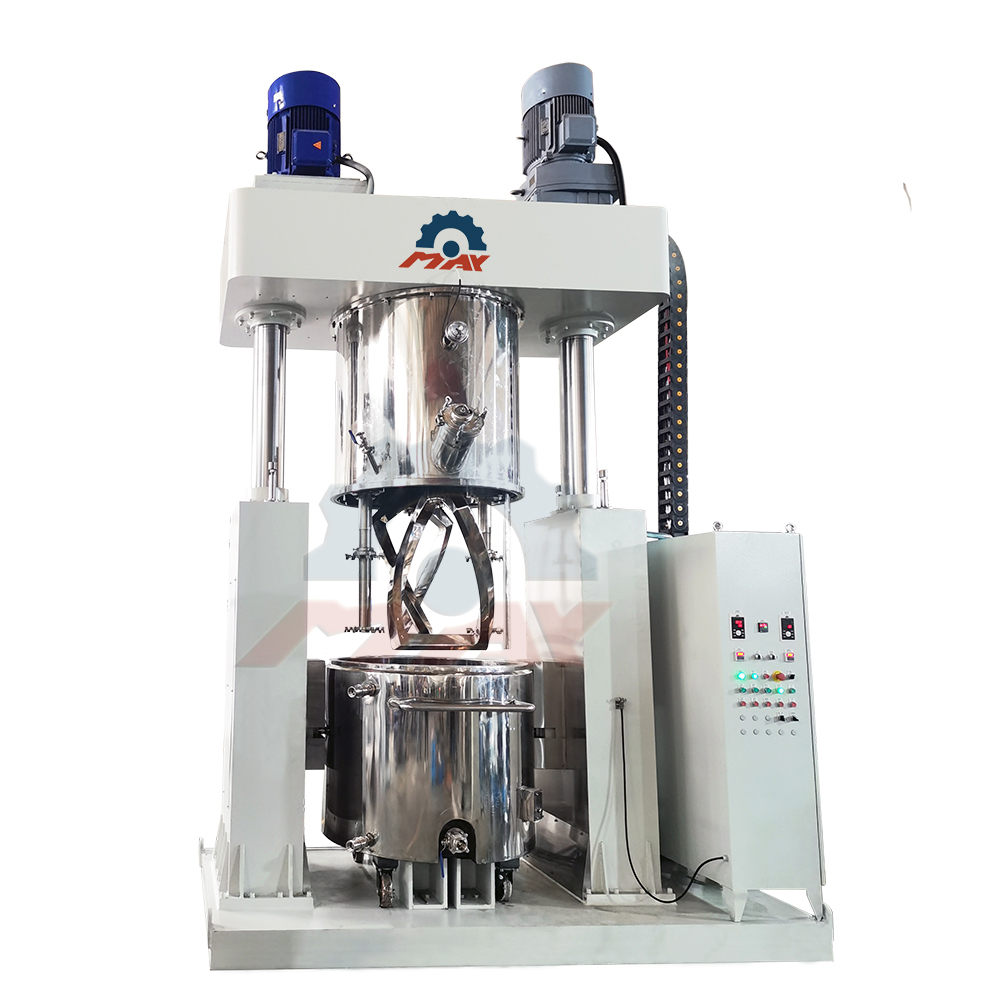

Two agitators rotate around their own axis while simultaneously revolving around the tank center.
This ensures:
Full material circulation
No dead zones
High uniformity in slurry structure
2. High-Speed Dispersion System
A high-speed disperser operates up to 2980 rpm, generating strong shear force to break particle agglomeration.
Improves:
Conductive carbon dispersion
Active material distribution
Slurry fineness
3. Vacuum Deaeration System
Under vacuum conditions (-0.09 MPa), trapped air and microbubbles are removed.
Benefits:
Higher electrode density
Better coating consistency
Improved battery cycle performance
Key Features
High Torque Output Design
Supports high-solid-content slurry such as LFP and NCM electrode materials.
Vacuum System (-0.09 MPa)
Prevents oxidation and ensures bubble-free mixing.
High-Speed Dispersion (Up to 25 m/s linear speed)
Shortens mixing time and improves slurry uniformity.
Precision Scraper System
Ensures no material residue on tank wall and improves mixing efficiency.
Industrial Sealing System
Supports vacuum and pressure stability up to 1.5 bar.
Low Noise Operation (<80 dB)
Improves factory working environment.
Applications
Lithium Battery Manufacturing
Lithium Iron Phosphate (LFP) slurry
NCM / NCA cathode slurry
Graphite anode slurry
Silicon-carbon composite slurry
Energy Storage Industry
Supercapacitor slurry
Flow battery electrode materials
Chemical Industry
High-viscosity adhesives

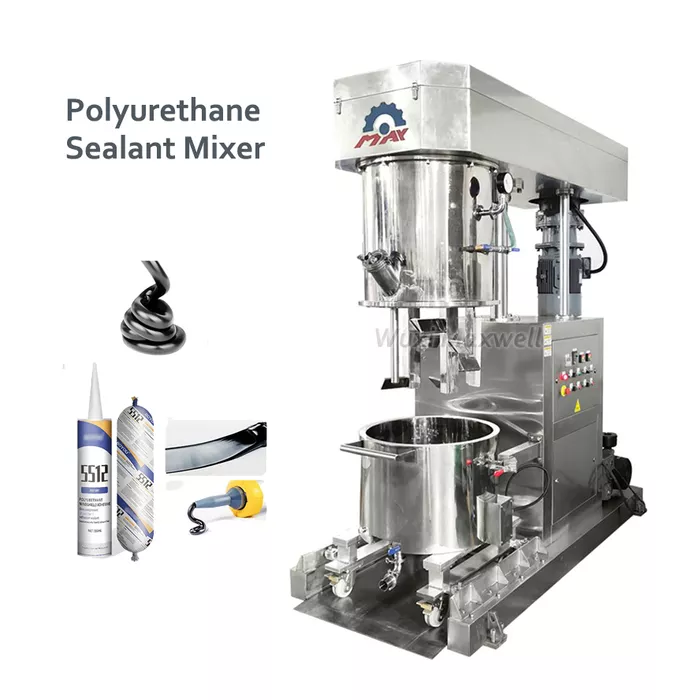

Silicone sealants
Coatings and resins
Electronic Materials
Conductive paste
Electronic ink slurry
Technical Parameters
| Item | Specification |
|---|---|
| Model | MAX-ZJR-850 |
| Working Volume | 850L |
| Mixing Type | Double Planetary |
| Dispersion Speed | Up to 2980 rpm |
| Linear Speed | Up to 25 m/s |
| Vacuum Degree | -0.09 MPa |
| Material | SUS304 / SUS316L |
| Surface Finish | Ra ≤ 0.32 μm |
| Sealing Pressure | 1.5 bar |
| Control System | PLC Touch Screen |
| Discharge Method | Hydraulic / Press Extrusion |
Advantages vs Traditional Mixers
| Feature | 850L Vacuum Planetary Mixer | Conventional Mixer |
|---|---|---|
| Mixing Uniformity | High | Medium |
| Vacuum Capability | Yes | No |
| Dispersion Efficiency | High (2980 rpm) | Low |
| High Viscosity Handling | Excellent | Limited |
| Battery Slurry Suitability | Fully optimized | Partial |
Why This Design Matches Maxwell-Level Standards
This system follows the same engineering logic used in Maxwell mixing equipment:
Multi-motion planetary structure
Vacuum + dispersion integration
Heavy torque transmission system
Precision scraping design

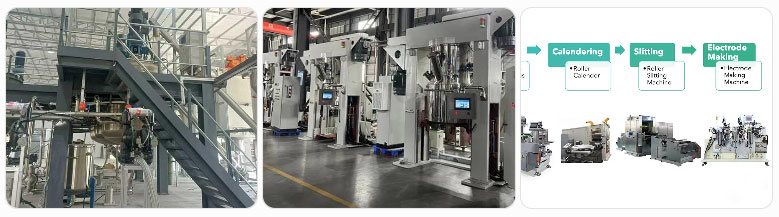

It is designed for modern lithium battery gigafactory production lines requiring high consistency and stability.
FAQ
What materials can this mixer process?
Lithium battery slurry, conductive paste, adhesives, coatings, and high-viscosity chemical materials.
Can it operate under vacuum?
Yes, it operates under -0.09 MPa vacuum for bubble-free mixing.
Is it suitable for large-scale production?
Yes, 850L is designed for industrial-scale battery slurry production.
Can it be customized?
Yes, including mixing system, dispersion configuration, and automation level.
Conclusion
The 850L Vacuum Double Planetary Mixer is a high-end industrial solution for lithium battery slurry manufacturing. With vacuum mixing, planetary motion, and high-speed dispersion, it ensures stable and uniform electrode slurry production.
It is widely used in battery manufacturing, energy storage materials, and advanced chemical industries.
