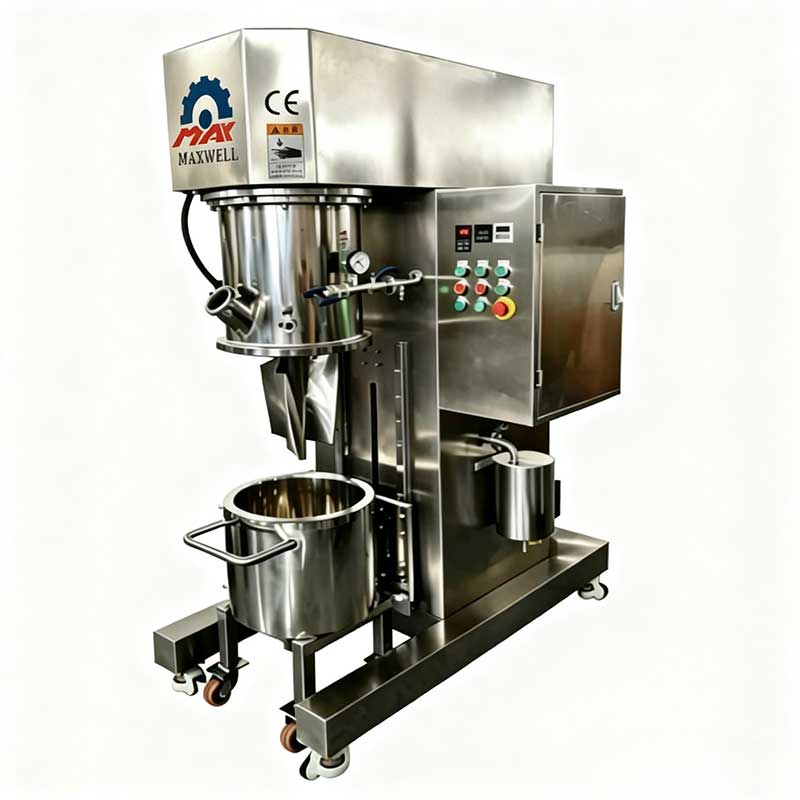

Scaling Up – From Laboratory to Production with a Vertical Kneading Machine
Product development often starts at the lab bench, but moving from a 2‑litre prototype to a 500‑litre production line presents significant challenges. The vertical kneading machine family offers a seamless scaling path because the same planetary mixing principle works across all sizes. This blog explains how to transition smoothly and avoid common pitfalls.
The lab‑scale starting point

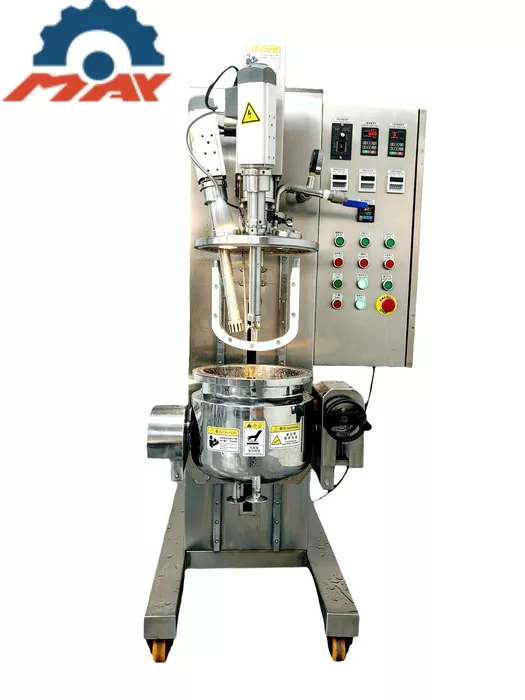

Most R&D departments begin with a small laboratory‑scale vertical mixing equipment such as the SXJ‑2 (2‑litre working volume) or SXJ‑5. These units are compact, easy to clean, and allow formulation chemists to test viscosity, dispersion, and temperature sensitivity with minimum material consumption. At this stage, you can also identify critical parameters:
Mixing time needed to achieve homogeneity
Optimum blade speed and disperser speed
Maximum safe temperature without degrading ingredients
Vacuum holding time for complete de‑aeration
The pilot‑scale bridge
Once the formulation is fixed, the next step is a pilot‑scale vertical kneading machine like the SXJ‑30 or SXJ‑50. These machines produce 20‑40 kg batches — enough for stability testing, regulatory samples, and initial market trials. The larger blade geometry and stronger motors will behave slightly differently from the lab unit, so expect to fine‑tune speed and time settings. At this scale, you can also evaluate the hydraulic lifting system and the ease of discharge — aspects that are not fully represented in lab equipment.
The production‑scale leap
Production models (SXJ‑200 to SXJ‑2000) are built for continuous operation with higher throughput. The main differences include:
More powerful motors to handle larger volumes of high‑viscosity material
Heavier‑duty seals and bearings to withstand extended run times
Automated controls with PLC recipes to ensure batch‑to‑batch consistency
Larger heating/cooling capacity to maintain temperature across bigger volumes
Tips for successful scale‑up
| Aspect | Lab/Pilot Action | Production Action |
|---|---|---|
| Mixing time | Determine minimum time for homogeneity | Multiply by 1.2‑1.5x, confirm with torque measurement |
| Speed correlation | Lower blade speeds with lower viscosity | Increase motor power, maintain tip speed |
| Cooling | Use tap water | Use chilled water or glycol with dedicated chiller |
| Cleaning | Manual cleaning with solvent | Consider CIP system with automated spray |
| Vacuum pump | Single‑stage pump | Two‑stage pump with larger capacity |
Avoid the linear scaling trap
It is a common mistake to assume that doubling the batch size simply means doubling the mixing time. In reality, heat generation increases faster than surface area can dissipate, and the flow pattern changes. We recommend running a full factorial trial on the pilot vertical kneading machine before committing to the production model. Document the mixing curve (torque vs. time) and use that data to set the production recipe.
With careful planning and the right partner, scaling up your vertical kneading machine from lab to production can be a smooth and predictable process, saving you both time and material costs.
