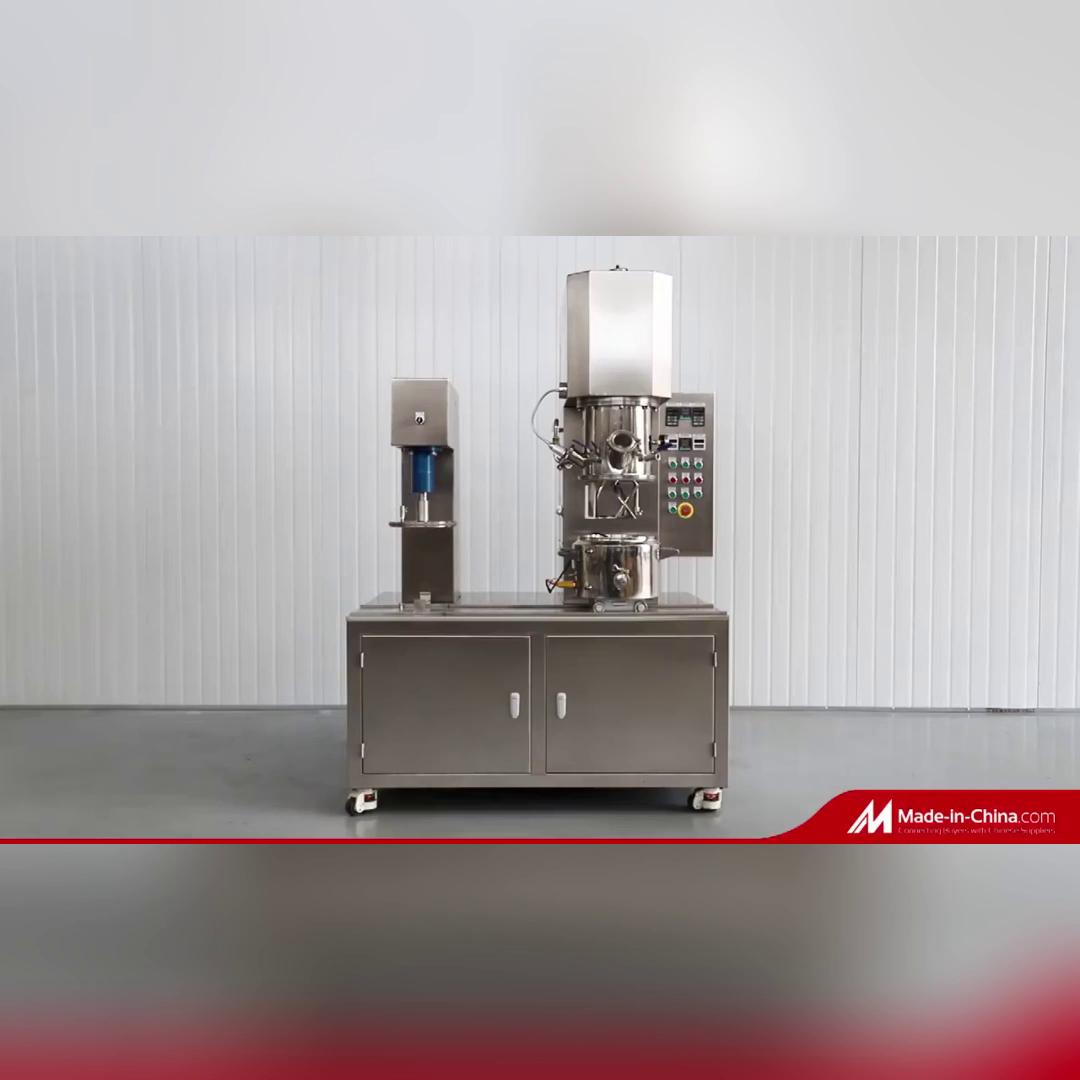

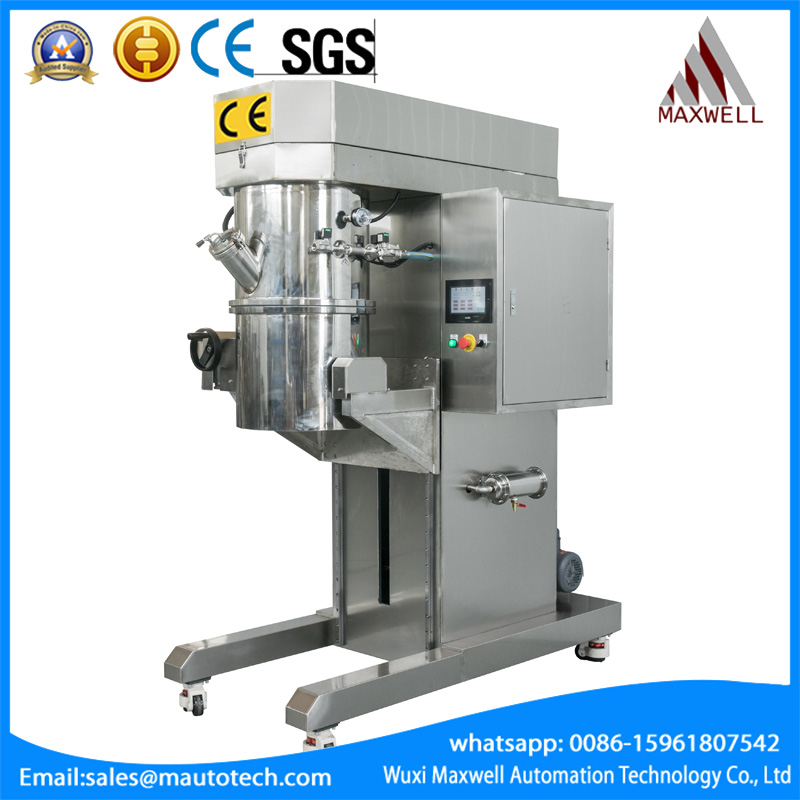

15L Vacuum Double Planetary Mixer with Touch Screen
In the fields of new energy batteries, sealants, adhesives, cosmetics, and high-viscosity chemical materials, pilot-scale production capacity combined with precise mixing control is essential for process development and small-batch manufacturing. Wuxi Maxwell Automation Technology Co., Ltd., with over 18 years of industry experience, offers the 15L Vacuum Double Planetary Mixer with Touch Screen – a versatile pilot-scale device integrating high-torque mixing, high-speed dispersion, vacuum degassing, and intelligent PLC control with touch screen interface, specifically designed for pilot production and small-batch manufacturing of sealants, adhesives, battery slurries, cosmetics, and other high-viscosity materials .
Working Principle: Planetary Motion, High-Speed Dispersion, Vacuum Environment, and Intelligent Control

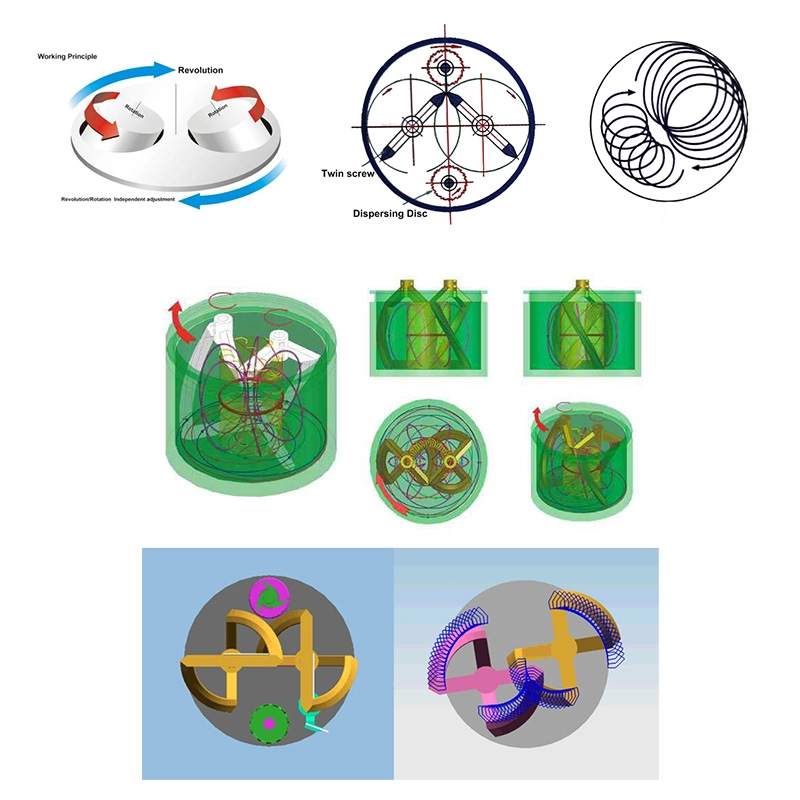

The "double planetary" mixer derives its name from its unique motion pattern. During operation, the low-speed mixing blades and high-speed dispersion disc rotate around the mixing vessel's central axis (revolution) while simultaneously rotating on their own axes (rotation). This compound motion generates strong shearing and kneading forces, causing materials to circulate comprehensively and achieve uniform mixing at both macro and micro levels. The precision-machined clearances between the blades and between the blade and the mix tank's inner walls provide a strong shearing force, resulting in superior mixing, kneading, and dispersion .
The high-speed disperser (up to 2980 rpm) creates intense shear forces that break down agglomerates and ensure thorough dispersion of fillers, pigments, and additives – critical for battery slurries, sealants, and adhesive formulations .
The integrated vacuum system (achieving a vacuum level down to -0.09 MPa) effectively removes air bubbles entrapped during mixing. This is particularly important for sealants, adhesives, battery slurries, and electronic potting compounds where bubbles can compromise product integrity, electrical insulation, or bond strength .
The touch screen control system is a key feature of this model. With PLC intelligent control and HMI touch screen interface, operators can easily set and monitor mixing parameters, including multi-stage speed settings, mixing time, and temperature. The system also provides motor overload protection and various electrical safety features .

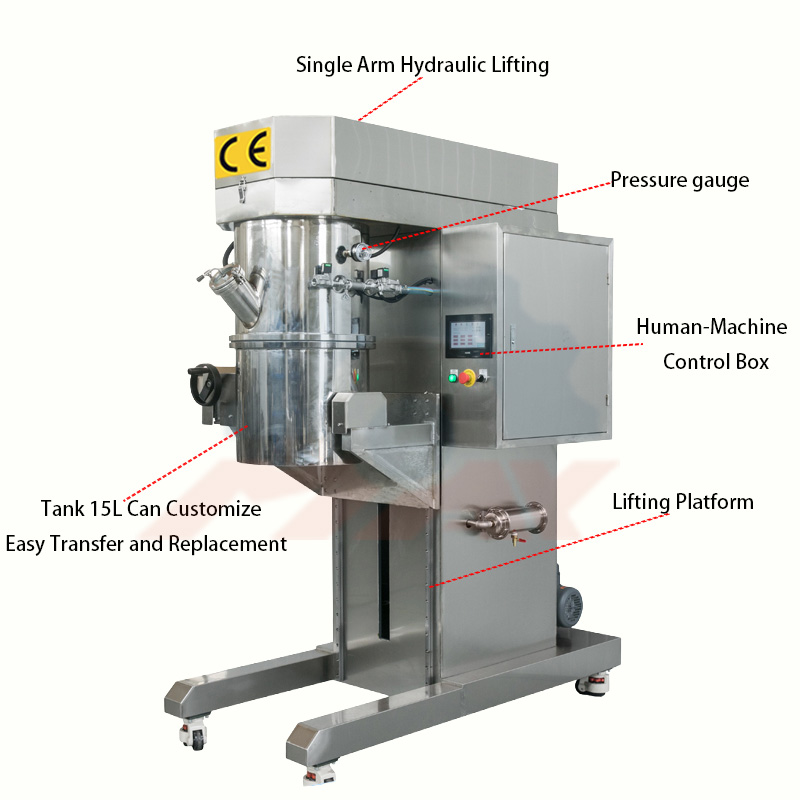

The lifting cap system allows the vessel cover to be raised and lowered hydraulically. Furthermore, the stirrers and scraper can rise with the beam and fully detach from the vessel body, facilitating easy feeding, sampling, and cleaning .
Core Technical Specifications
| Parameter | Specification / Details |
|---|---|
| Model | SXJ-15 |
| Design Volume | 24L |
| Working Volume | 15L |
| Tank Inner Size | φ350×210mm |
| Vacuum Level | -0.09 MPa |
| Revolution Speed | 0 - 43 rpm (Adjustable) |
| Self-rotary Speed | 0 - 99 rpm (Adjustable) |
| Scraper Speed | 0 - 43 rpm (Adjustable) |
| Dispersion Speed | 0 - 2980 rpm (Adjustable) |
| Rotary Power | 2.2KW |
| Disperser Power | 2.2KW |
| Material of Construction | SUS304 / SUS316L Stainless Steel (Customizable) |
| Dimension | 1500×800×1900mm |
| Lifting Method | Hydraulic Lifting |
| Lifting Stroke | 300mm (approx.) |
| Control System | PLC intelligent control with HMI touch screen |
| Heating/Cooling | Jacketed vessel for oil/water/steam heating or cooling |
| Scraper | Wall scraper attached to planetary frame for no-dead-corner mixing |
| Extruder (Optional) | Integrated screw extruder for efficient discharge of high-viscosity materials |
Diverse Application Fields
The 15L vacuum double planetary mixer with touch screen is designed for pilot-scale production across numerous industries :
Energy Sector: Preparation of lithium battery slurries, nickel-chromium, nickel-metal hydride, and fuel cell pastes .
Electronics & Appliances: Solder paste, ceramic slurry, magnetic materials, electronic adhesives, PVC plastics, electronic potting glue, hot melt adhesives .
Chemical Industry: Various sealants, adhesives (silicone sealant, polysulfide sealant, structural insulating glass sealant, waterproof sealant, anaerobic adhesive), synthetic resins, rubber, printing inks, putty, abrasives, wax products, ceramic pigments .
Pharmaceuticals: Various ointments, polymer gels, and medical preparations .
Cosmetics & Food: Creams, lipsticks, lotions, gels, facial masks, mascara, foundations, nail polish, toothpaste, soaps, jams, seasonings, and chocolate syrup .
Structural and Design Advantages
Touch Screen Intelligent Control: PLC control with HMI touch screen interface allows for easy operation, multi-stage speed settings, and real-time monitoring. Provides motor overload protection and various electrical safety features .
High-Speed Disperser: The integrated high-speed dispersion disc (up to 2980 rpm) provides intense shear forces for breaking down agglomerates and achieving uniform dispersion of fillers and additives .
No Dead Corners: A wall scraper attached to the planetary frame continuously scrapes material from the vessel wall, ensuring no unmixed zones and consistent batch quality .

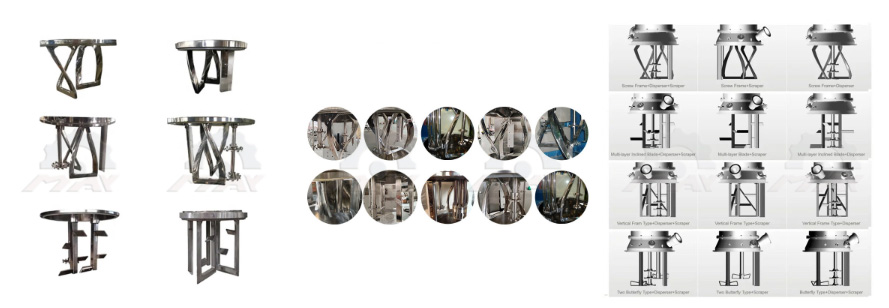

Versatile Agitator Options: Mixing heads can be tailored with options like twist-type, blade-type, frame-type impellers, as well as high-speed dispersion discs and homogenizers, to suit different formulations .
Vacuum Degassing: The integrated vacuum system removes air bubbles and volatiles, ensuring product density, stability, and appearance .
Temperature Control: The jacketed vessel allows for precise heating or cooling via oil, water, or steam circulation, with temperature displayed on the control panel .
Convenient Operation & Cleaning: The cover is hydraulically lifted, and the mixing vessel is movable, facilitating easy feeding, sampling, and cleaning .
Optional Extruder System: An integrated screw extruder can be added for efficient, clean discharge of high-viscosity materials directly from the mixing vessel, minimizing material waste and manual handling.
Scalability: MAXWELL offers a complete range from 2L to 2000L, allowing for seamless scale-up .
