How to Operate and Maintain the 200L Vacuum Dispersing Mixer?

2026-07-02 08:59

Is the Machine Easy to Operate and Clean?

The 200L vacuum dispersing mixer is designed with user-friendliness and efficiency as top priorities. , the SXJ-200 features :

Feature	Description	Operational Benefit
Automatic Lifting Cover	Cover is of automatic lifting type with hydraulic lifting system	Easy access for loading, cleaning, and maintenance
Movable Vessel	Discharging mode includes emulsifying pot turning type and bottom valve discharging type	Flexibility between workstations
PLC Control with Touchscreen	Controls vacuum, temperature, frequency, and time setting system	Automated, repeatable batch operations
Two-Way Wall Scraping Mixing	Mixes materials quickly and is very easy to clean, saving cleaning time	Complete vessel emptying, quick product changeover
Mirror Polishing	Tank body and pipes adopt mirror polishing, fully conforming to GMP requirements	Hygienic, easy-to-clean surfaces

The homogenizing system and mixing system can be used separately or at the same time, providing operational flexibility .

Hydraulic Lift & Discharge System - Showing the machine with cover lifted for cleaning, and the discharge system showing both turning type and bottom valve discharging options.

Technical Metric	Specific Parameter Value
Machine Model	QF-200-265L
Low-Speed Agitation Power	7.5 KW
Low-Speed Shaft Speed	76 RPM
High-Speed Dispersion Power	11 KW
High-Speed Shaft Speed	1450 RPM
Vessel Inner Diameter & Height	$\phi$ 750 × 600 mm
Overall Footprint Dimensions	1600 × 1100 × 2300 mm
Total Net Weight	2500 KG

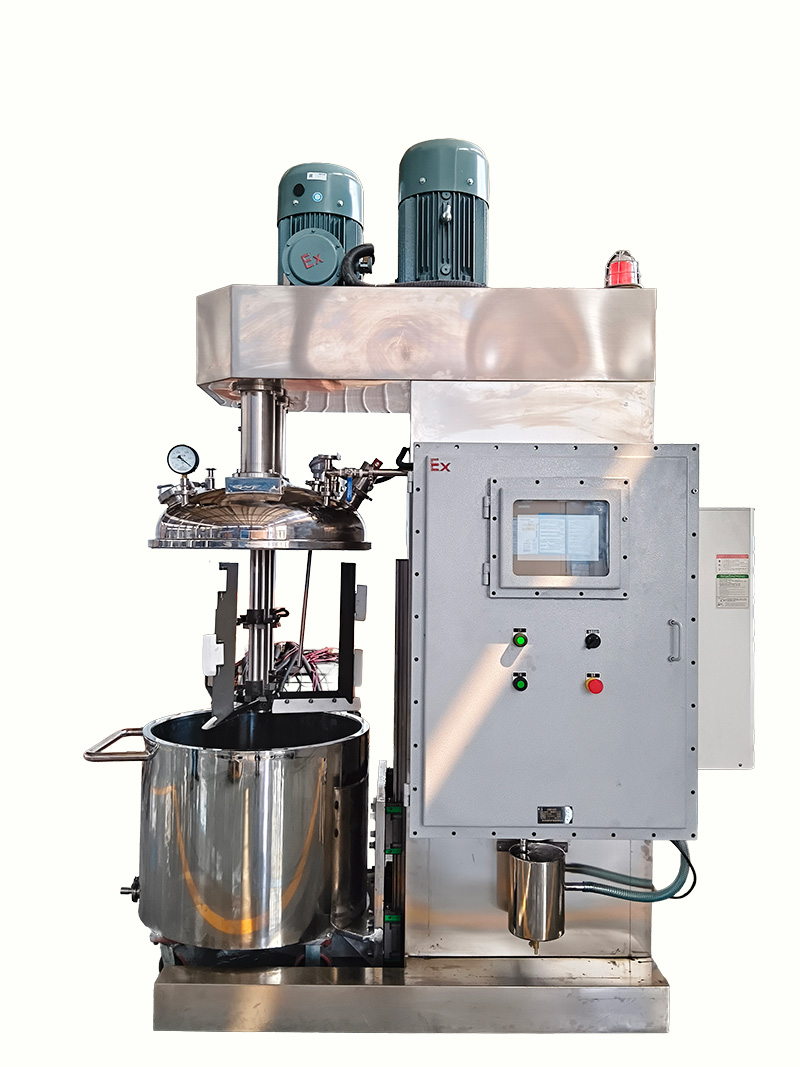

Safety Feature	Description
PLC Control System	Automatically (PLC) operated with motor overload protection
GMP Compliance	Optional GMP-standard button class, fully conforms to GMP requirements
Three-Layer Structure	Sturdy and durable, good anti-scalding effect
CE Certification	All machinery fully conforms to CE certification criteria
ISO 9001 Certification	Quality management certification
2-Year Warranty	Standard warranty coverage

Support Category	Coverage
Standard Warranty	2-year comprehensive coverage
Technical Support	Remote installation guidance and on-site commissioning
After-Sales Service	Response within 24 hours for technical issues
Professional Team	Senior engineers with 18+ years of experience
