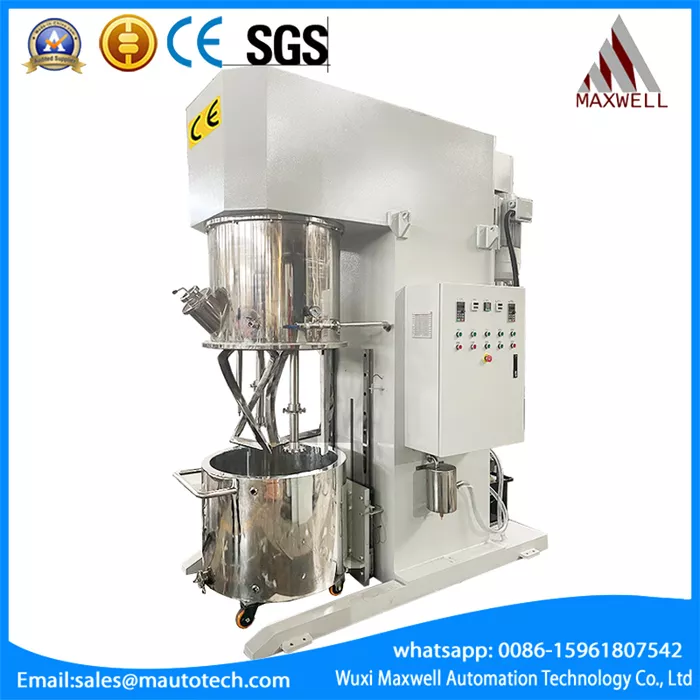

300L Vacuum Power Disperser Mixer Machine (QF-300) – Heavy-Duty Dispersion for High-Viscosity Materials

The 300L Vacuum Power Disperser Mixer Machine is a heavy-duty industrial dispersing and mixing system designed for processing high-viscosity pastes, sealants, adhesives, battery materials, and other demanding formulations. This Multi-Functional Vacuum Strong Power Dispersing Mixer combines low-speed stirring with high-speed dispersion under vacuum conditions, delivering efficient and consistent mixing results for manufacturers across multiple industries.

Product Overview

The 300L Vacuum Power Disperser Mixer Machine (QF-300) is a Multi-Functional Vacuum Strong Power Dispersing Mixer manufactured by Wuxi Maxwell Automation Technology Co., Ltd. This equipment is specifically engineered to handle paste-like materials, heavy slurries, and formulations with high solid content that require intense dispersion force.

Unlike standard emulsifying mixers that focus on liquid-liquid emulsification, this Multi-Functional Vacuum Strong Power Dispersing Mixer is optimized for solid-liquid dispersion and paste mixing. The equipment features a dual-motor design: a low-speed stirring system for bulk material turnover and a high-speed dispersing shaft for intense particle size reduction and uniform dispersion. The vacuum system ensures bubble-free processing, which is critical for applications such as battery paste production, sealant manufacturing, and high-quality cosmetic formulations.

The QF-300 is part of Maxwell's QF series of Multi-Functional Vacuum Strong Power Dispersing Mixers, which also includes models such as QF-500, QF-600, QF-800, QF-1000, QF-1100, and QF-5000, offering working volumes from 300L to 5000L.

Technical Specifications

All data below are sourced from the official product pages, ensuring complete consistency with the original materials:

Working Principle

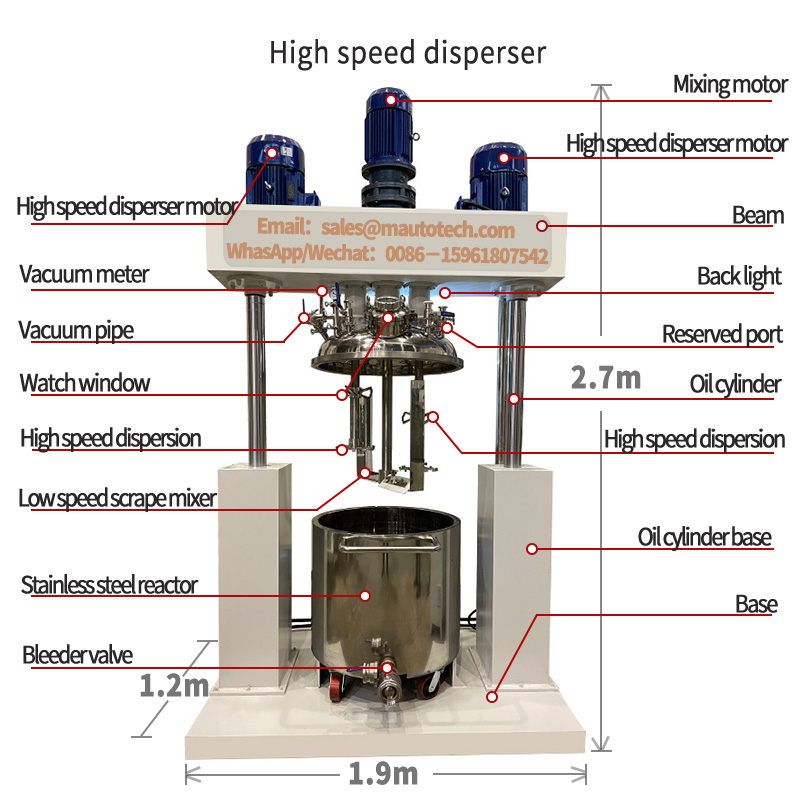

The QF-300 Multi-Functional Vacuum Strong Power Dispersing Mixer operates on a unique multi-stirrer principle. What sets this dispersion mixer apart is that it includes 3-4 different stirrers within the tank. Of these, one low-speed stirrer rotates on the container axis while the other 2-3 high-speed stirrers rotate at different high speeds about their own axes. This way, materials inside the container undergo strong shear and kneading, completing the mixing process in one complex movement.

The low-speed stirring system, driven by an 11 KW motor at a fixed 33 rpm, provides powerful bulk material turnover, ensuring that all contents in the tank are continuously moving and preventing dead zones. This is particularly important for high-viscosity pastes that would otherwise stick to the tank walls.

Simultaneously, the high-speed dispersion system, driven by a 15 KW motor with variable speed control (0-1450 rpm), creates intense shear forces through the dispersion disc. The high-speed rotation of the disc generates strong centrifugal force, drawing materials into the dispersion zone where particles are subjected to hydraulic shear, impact, and cavitation. This combination of forces effectively breaks down agglomerates and disperses solid particles uniformly throughout the liquid phase.

The vacuum system operates during the entire mixing process, removing trapped air and volatile components. This is essential for applications where air entrapment would compromise product quality.

The hydraulic lifting system allows the mixing head and cover to be raised for easy cleaning, inspection, and material discharge.

Key Features

According to the product specifications, the QF-300 Multi-Functional Vacuum Strong Power Dispersing Mixer offers the following key features:

1. High Shear Rates: The device operates at around 2800 rpm, ensuring thorough mixing and dispersion of materials.

2. Efficient Homogenization: The device provides extensive shear surfaces, quickly reducing particle size for uniform distribution.

3. Short Processing Time: The high-shear emulsification process achieves uniform dispersion and emulsification in a short time.

4. Multi-Functional Design: The device is versatile and can handle emulsification, decomposition, dissolution, dispersion, and homogenization.

5. Enhanced Quality and Stability: The device significantly improves product quality and stability through uniform particle distribution.

6. Efficient Dispersion: Intense shear forces effectively break down particles and distribute them evenly in the mixture.

7. Narrow Particle Distribution: The device ensures a narrow particle size distribution with excellent uniformity.

8. Prevents Agglomeration: Rapid processing reduces the risk of particle clumping and uneven mixing.

9. Wide Adaptability: The device is suitable for effective dispersion and processing of various materials.

10. Stable Performance: In silicone sealant production, the device ensures consistent product performance and durability.

11. Dual-Motor Design for Optimal Processing: The independent low-speed and high-speed systems allow operators to process materials that would be difficult or impossible with single-shaft mixers.

12. GMP-Compliant Contact Materials: All contact parts are made from high-quality SUS304 or SUS316L stainless steel, ensuring corrosion resistance, easy cleaning, and compliance with hygiene standards.

13. Hydraulic Lifting System: The hydraulic lifting mechanism allows the mixing head, cover, and dispersion shaft to be raised away from the tank, providing excellent access for cleaning and maintenance.

Applications

According to the manufacturer's specifications, the QF-300 Multi-Functional Vacuum Strong Power Dispersing Mixer is widely used in the following industries and applications:

The QF-300 is particularly well-suited for materials with viscosity less than 1,000,000 cps and solid content under 90%, such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, and jam.

The 300L Vacuum Power Disperser Mixer Machine (QF-300) is a robust Multi-Functional Vacuum Strong Power Dispersing Mixer specifically engineered for high-viscosity paste materials, sealants, adhesives, battery pastes, and other demanding applications. With its 376L design capacity (300L working capacity), dual-motor system (11 KW low-speed + 15 KW high-speed dispersion), variable high-speed control (0-1450 rpm), vacuum capability, and GMP-compliant stainless steel construction, this Multi-Functional Vacuum Strong Power Dispersing Mixer offers manufacturers a powerful and versatile solution for their production needs.

Whether processing lithium battery pastes, silicone sealants, electronic adhesives, cosmetic creams, or pharmaceutical ointments, the QF-300 delivers the mixing power, precision, and consistency required for high-quality industrial production.

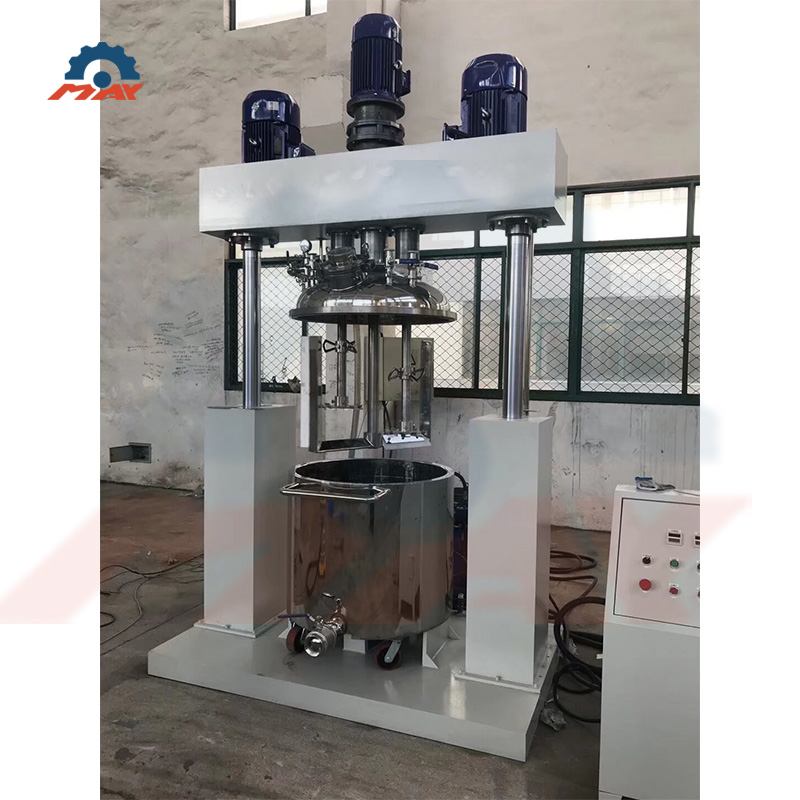

Machine Characteristic

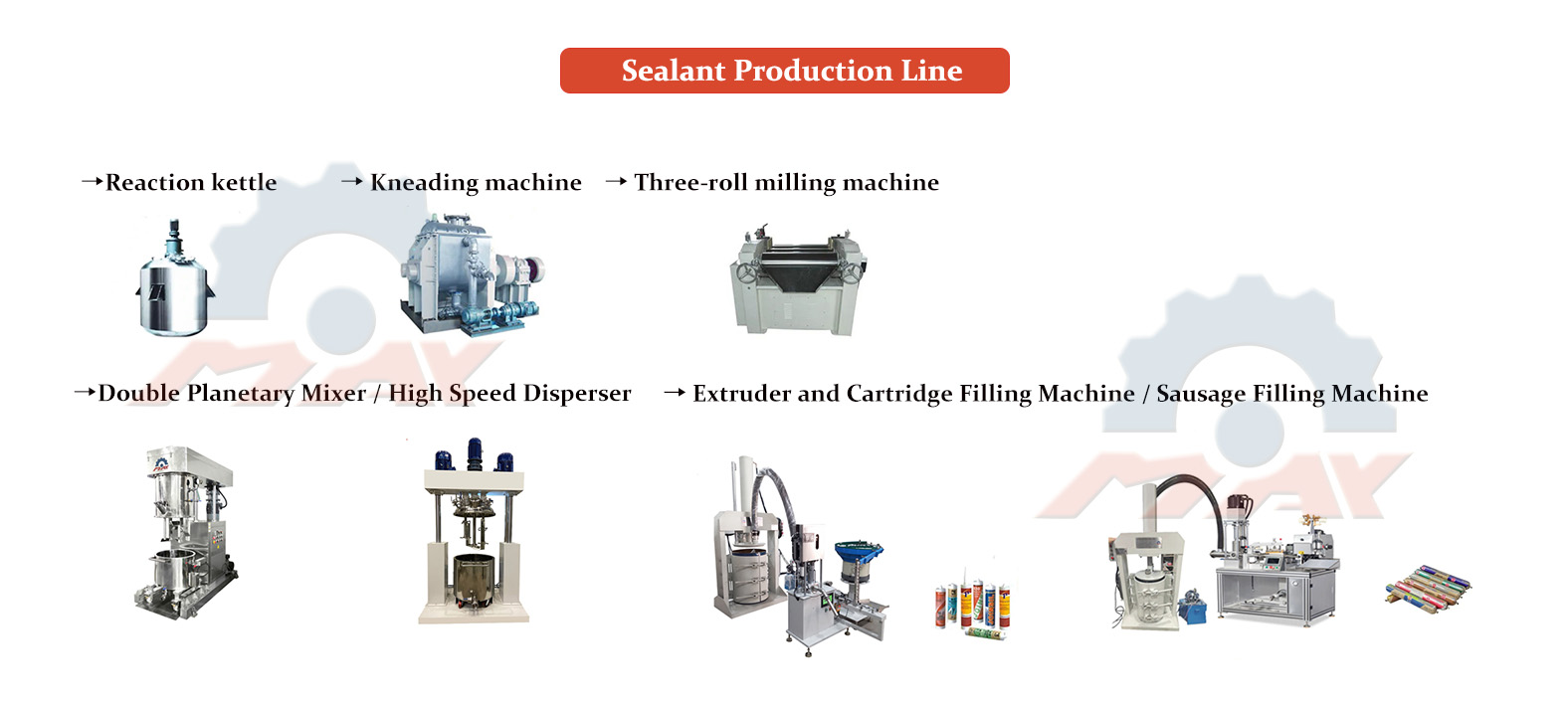

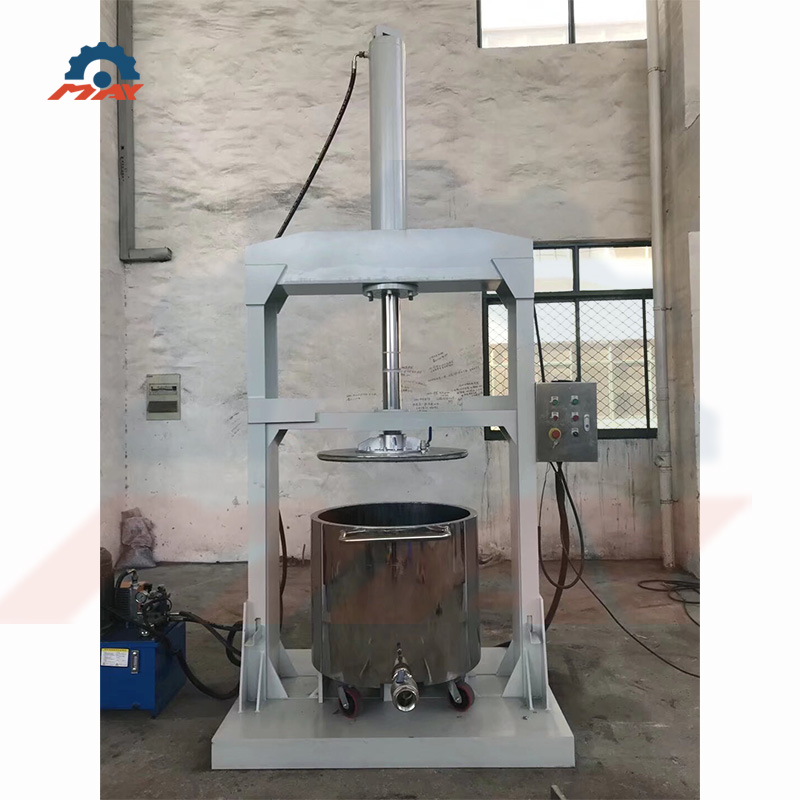

Silicone Sealant Production Line
