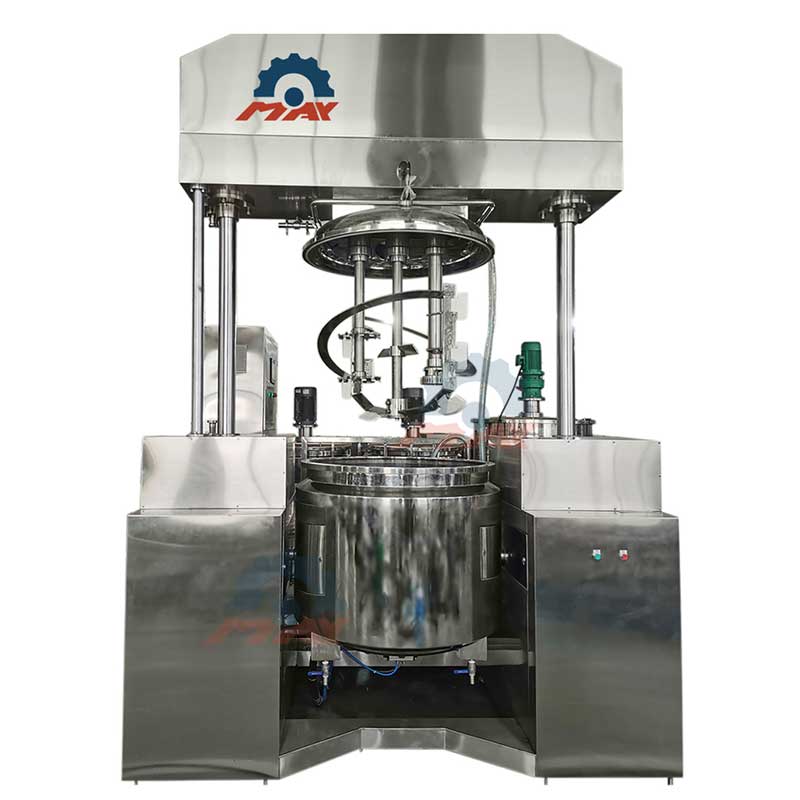

500L Toothpaste Vacuum Emulsifying Mixer (VEM-500)
The MAXWELL 500L toothpaste vacuum emulsifying mixer (VEM-500) is a three-pot homogenizing system that blends, emulsifies and deaerates high-viscosity toothpaste paste in a single closed, vacuum-controlled cycle. It is engineered to dissolve hard-to-wet powders such as AES, AESA and LSA quickly, cut energy consumption, and deliver a glossy, lump-free product with stable texture.
Watch the VEM-500 in Action
Video: the VEM-500 500L vacuum emulsifying mixer running on the production floor — see high-shear homogenizing and vacuum deaeration in action. (Source: MAXWELL YouTube Shorts)
How the VEM-500 Vacuum Emulsifying Mixer Works
Toothpaste is not simply "mixed" — it is a structured suspension of abrasives, humectants, thickeners and active ingredients. The VEM-500 processes it through an integrated cycle:
Pre-mixing (water & oil phase pots): Liquid and powdered raw materials are heated and dispersed in separate side pots, so difficult powders dissolve before they ever enter the main tank.
Vacuum transfer: The vacuum pump draws pre-mixed batches into the main emulsifying pot, eliminating manual pouring and preventing air intake.

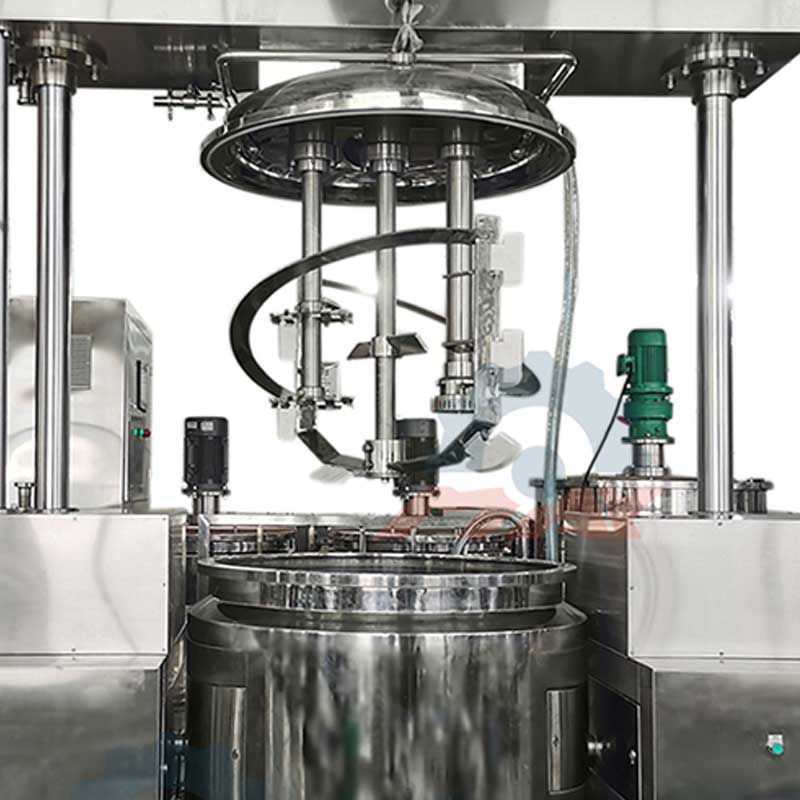

Scraping & framing agitation: A wall-scraping anchor stirrer continuously sweeps material off the jacket wall, creating a fresh interface and preventing burnt or uneven zones.
High-shear homogenizing: The rotor-stator homogenizer shears the mass into fine particles (typically 2–200 µm), producing a uniform, creamy emulsion.
Vacuum deaeration: Because the pot is under vacuum (≈ -0.1 MPa), micro-bubbles generated during mixing are removed instantly — the key to a smooth, non-pitting toothpaste.
Discharge: Finished paste is released through a disc/bottom valve, ready for the filling line with no secondary transfer.

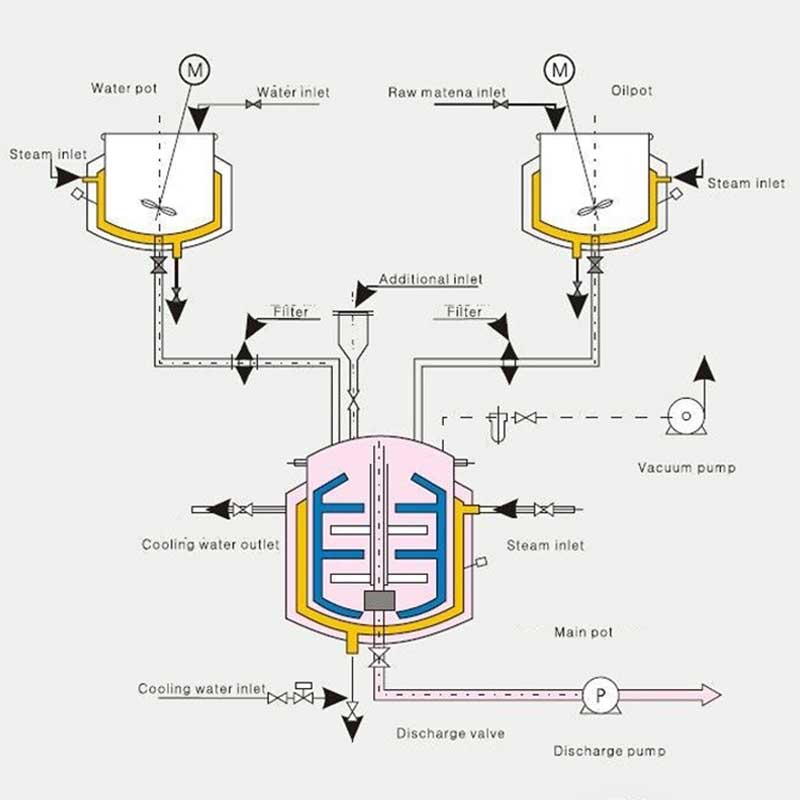

VEM-500 Vacuum Emulsifying Mixer Works
Key Features & Advantages
Strong shear disperses viscous, powder-heavy formulations and shortens production time.
Stepless timing control reduces foam under high-viscosity, low-temperature conditions.
Dissolves hard-to-wet actives (AES, AESA, LSA) faster, cutting power use per batch.
Disc-valve or bottom discharge suits all liquid-wash and paste products.
Mirror-polished product-contact surfaces meet GMP hygiene standards.
Tank working volume configurable from 10 L up to 2000 L per your output.

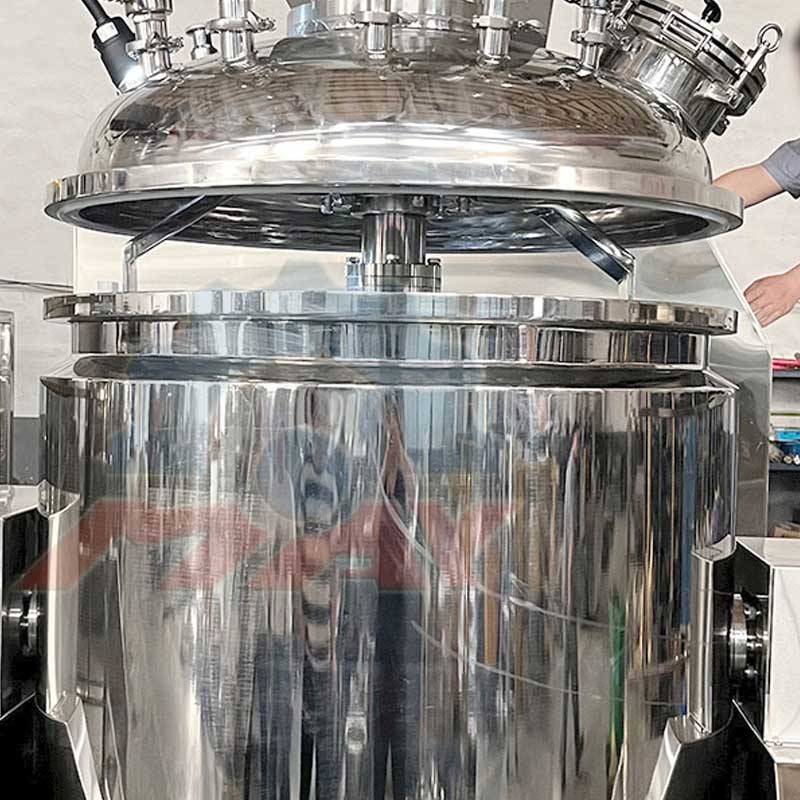

Imported three-layer SUS316L / SUS304-2B plate, mirror-polished, GMP-standard and anti-scald.
Automatic rising pot cover and tilt/bottom discharge for fast, safe batch changeover.
One console sets vacuum, temperature, frequency and time; buttons optional.
Frequency-converted scraper paddle cleans the wall and shortens cleaning time.
VEM-500 Technical Parameters
| Parameter | Specification (VEM-500) |
|---|---|
| Model | VEM-500 (toothpaste vacuum emulsifying mixer) |
| Emulsifying pot | Design 500 L / Working 400 L |
| Scraper stirring | 3 kW, 10 – 120 rpm |
| Homogenizer | 7.5 kW, 0 – 3000 rpm |
| Water phase pot | Design 300 L / Working 250 L, 1.1 kW, 1500 rpm |
| Oil phase pot | Design 250 L / Working 200 L, 1.1 kW, 1500 rpm |
| Vacuum | ≈ -0.09 MPa (design -0.1 MPa) |
| Temperature | ≤ 100 ℃ |
| Tank structure | 3-layer SUS316L / SUS304-2B, mirror-polished |
| Fineness | Micron-level (high-shear rotor-stator) |
| Heating / cooling | Electric or steam; jacket cooling; insulation layer |
| Control system | PLC touch-screen (buttons optional), GMP-class |
| Lifting | Hydraulic lifting pot cover |
| Discharge | Tilt / disc-valve / bottom-valve |
| Power supply | 220 V, 50/60 Hz (custom voltages available) |
| Machine size | Customized to layout |
| Net weight | ≈ 1000 kg (customized) |
| Certification | CE, GMP-ready |
| Lead time | 30 – 40 days |
| Packing | Wooden case / stretch wrap |
Reference price: USD 50,000 (FOB, subject to configuration). Final quotation depends on capacity, heating method (electric/steam), control system (button / PLC) and optional CIP.
Full VEM Series Specification (5L – 1000L)
Complete parameter sheet across the VEM vacuum emulsifying mixer range — from lab-scale 5L to industrial 1000L:
Laboratory & Small Range (5L – 150L)
| Specification | 5L | 10L | 30L | 50L | 100L | 150L |
|---|---|---|---|---|---|---|
| Emulsifying Pot — Design Volume (L) | 6 | 12 | 35 | 63 | 120 | 165 |
| Emulsifying Pot — Capacity (L) | 5 | 10 | 30 | 50 | 100 | 150 |
| Scraper Stirring Power (kW) | 0.18 | 0.18 | 0.75 | 0.75 | 1.1 | 1.1 |
| Scraper Stirring Speed (rpm) | 10 – 120 | |||||
| Homogenizing Power (kW) | 0.55 | 0.55 | 1.5 | 1.5 | 3 | 3 |
| Homogenizing Speed (rpm) | 3000 | |||||
| Water Pot — Design Volume (L) | 3 | 6 | 20 | 35 | 70 | 95 |
| Water Pot — Capacity (L) | 2.5 | 5 | 17 | 28 | 60 | 85 |
| Water Pot — Stirring Power (kW) | 0.015 | 0.015 | 0.18 | 0.37 | 0.55 | 0.55 |
| Water Pot — Stirring Speed (rpm) | 1500 | |||||
| Oil Pot — Design Volume (L) | 3 | 6 | 15 | 20 | 50 | 70 |
| Oil Pot — Capacity (L) | 2.5 | 5 | 13 | 22 | 40 | 65 |
| Oil Pot — Stirring Power (kW) | 0.015 | 0.015 | 0.18 | 0.37 | 0.55 | 0.55 |
| Oil Pot — Stirring Speed (rpm) | 1500 | |||||
Industrial Range (250L – 1000L)
| Specification | 250L | 350L | 500L (VEM-500) | 650L | 1000L |
|---|---|---|---|---|---|
| Emulsifying Pot — Design Volume (L) | 250 | 350 | 500 | 650 | 1000 |
| Emulsifying Pot — Capacity (L) | 200 | 280 | 400 | 520 | 800 |
| Scraper Stirring Power (kW) | 1.5 | 2.2 | 3 | 3 | 7.5 |
| Scraper Stirring Speed (rpm) | 10 – 120 | ||||
| Homogenizing Power (kW) | 4 | 5.5 | 7.5 | 7.5 | 11 |
| Homogenizing Speed (rpm) | 3000 | ||||
| Water Pot — Design Volume (L) | 130 | 170 | 300 | 400 | 600 |
| Water Pot — Capacity (L) | 100 | 130 | 250 | 320 | 480 |
| Water Pot — Stirring Power (kW) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
| Water Pot — Stirring Speed (rpm) | 1500 | ||||
| Oil Pot — Design Volume (L) | 130 | 200 | 250 | 300 | 500 |
| Oil Pot — Capacity (L) | 100 | 160 | 200 | 240 | 800* |
| Oil Pot — Stirring Power (kW) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
| Oil Pot — Stirring Speed (rpm) | 1500 | ||||
* The 1000L oil-pot capacity is listed as 800 in the source spec sheet — please verify this figure before publishing. All values per MAXWELL manufacturer specification.
Applications in Toothpaste Production
Beyond fluoride and herbal toothpaste, the VEM-500 handles the full family of high-viscosity personal-care and oral-care pastes:
Conventional & desensitizing toothpaste (abrasive suspensions)
Whitening and gel-type toothpaste
Children's and natural/herbal oral-care pastes
Related cosmetic creams, ointments and lotions (shared line flexibility)
Its ability to process difficult powders and remove entrained air makes it equally suitable as a pilot unit for R&D and as a full production workhorse feeding an automatic filling line.

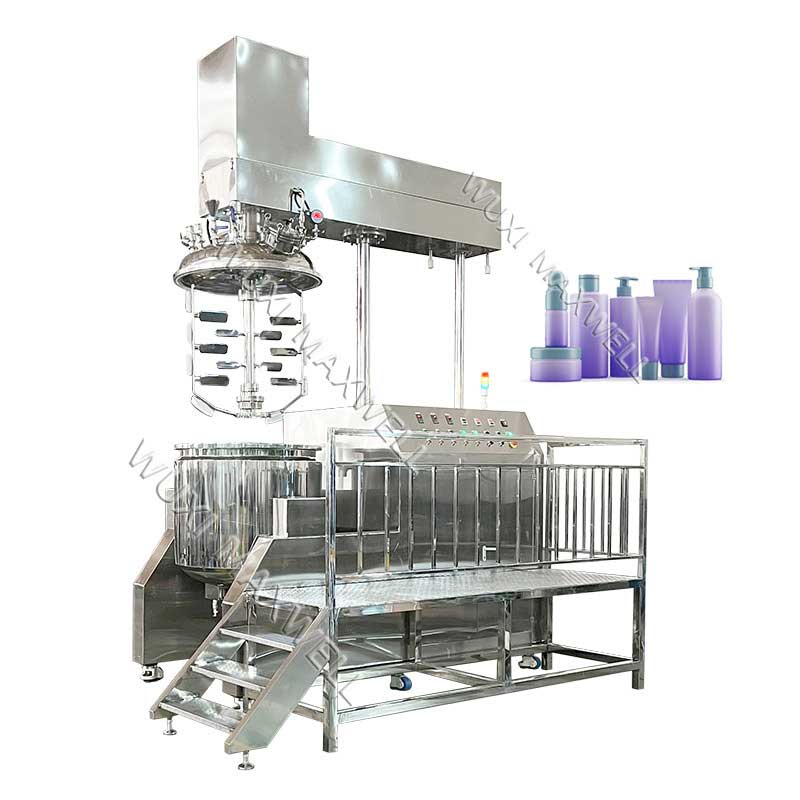

Beyond Toothpaste — One Platform, Many Formulas
The same 500L vacuum homogenizer platform serves cosmetics, food, chemical and pharmaceutical production, making it a versatile asset for contract manufacturers and multi-product lines:
Lotions, creams, serums, shower gel, toothpaste, dental cream, mouthwash.
Moisturizers, sunscreens, masks, ointments, BB / liquid foundation creams.
Mayonnaise, salad dressing, ketchup, peanut butter, sauces, honey.
Detergents, shampoos, hand sanitizer, disinfectants, soaps.

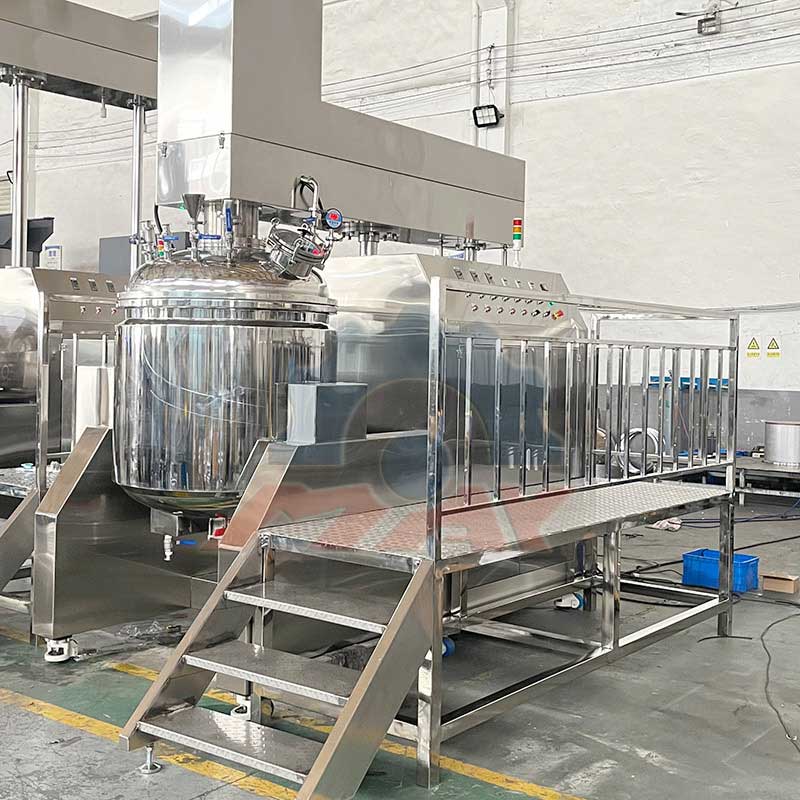

Build a Complete Toothpaste Production Line (Turnkey Solution)
A vacuum emulsifying mixer is only one stage of toothpaste manufacturing. MAXWELL supplies turnkey toothpaste production lines that connect every step from raw material to packed product, all synchronized under a single PLC control system for automated, low-labor operation:
Reverse-osmosis purification delivers the clean water required for stable, hygienic formulations.
The core paste-making stage — high-shear homogenizing and vacuum deaeration (this 500L unit).
Semi-automatic or automatic fillers dose paste into tubes or jars with consistent accuracy.
Integrated capping and sealing protect product integrity before final packaging.
Automatic labeling completes the finished, shelf-ready product.
One control system coordinates heating, vacuum, mixing speed and filling for repeatable batches.
Choose Your Capacity (VEM Series)
| Working Volume | Recommended For |
|---|---|
| 5 L – 50 L | Laboratory, pilot runs & small-batch R&D |
| 100 L – 150 L | Small-scale production |
| 250 L – 500 L | Mid-scale production (featured VEM-500 on this page) |
| 650 L – 1000 L | High-volume industrial lines |
MAXWELL builds the VEM vacuum emulsifying series from 5 L up to 1000 L, with electric or steam heating, a bottom-mounted homogenizer option, PTFE wall-scraping agitator, and button / PLC control — all configurable to your formula and layout.
Why Choose MAXWELL
18+ years of mixing & filling machinery manufacturing since 2006.
14,000 m² production base, equipment exported to 90+ countries.
Custom-built solutions tailored to your product spec and factory layout.
CE-certified machinery with a 2-year warranty and 24-hour technical response.
Turnkey support: remote guidance, on-site commissioning, installation & maintenance.
Frequently Asked Questions
What is the production capacity of the VEM-500 toothpaste emulsifying mixer?
The standard working volume is 500 liters (design 500 L / working 400 L). MAXWELL builds the VEM series from 5 L up to 1000 L, all customizable to your batch size and factory layout.
Why is vacuum emulsifying important for toothpaste?
Toothpaste is a high-viscosity paste with powders and active ingredients. Vacuum emulsifying removes air bubbles generated during high-shear mixing, giving a smooth, glossy, bubble-free product with longer shelf life and stable texture.
What materials are in contact with the product?
All product-contact parts use food- and pharmaceutical-grade stainless steel (SUS316L inner, SUS304 jacket/frame), with mirror-polished inner surfaces to meet GMP hygiene requirements.
Does MAXWELL provide installation and after-sales support?
Yes. Every machine ships with a 2-year warranty, remote installation guidance, and on-site commissioning. Technical response is guaranteed within 24 hours.
Can MAXWELL supply a complete toothpaste production line, not just the mixer?
Yes. Beyond the VEM vacuum emulsifying mixer, MAXWELL delivers turnkey lines including RO water treatment, automatic filling, capping/sealing and labeling — all coordinated by one PLC control system for 50 L pilot batches up to 2000 L industrial runs.
What are the lead time, heating options and control system?
Standard lead time is 30–40 days. Heating can be electric or steam (jacket type); cooling is via jacket coolant with an outer insulation layer. Operation is automatic through a PLC touch-screen console (button control optional), GMP-class.
